Composite elements
4Design Designboards are milled primarily from ALPI thick-cut veneers.
Milled reliefs
The defining feature of 4Design Boards is the milled surface – milled from ALPI thick-cut veneers, so that the same ALPI decors are also available in standard thickness for combinations of structured and smooth surfaces.
Sheet (TNT)
3130 × 1220 mm, milled ALPI thick-cut veneer, paper-fleece-backed on the reverse – the flexible base format.
FlexBoard
1000 × 1800 or 3000 × 1200 mm, with a fabric interlayer on 5 mm MDF – for two-dimensional forming of curves and bends.
Board (Rigid)
3000 × 1200 mm, milled thick-cut veneer on 15 mm MDF or plywood carrier with a compensating counter-veneer – the rigid variant.
Structure families
The defining feature of 4Design Boards is the milled surface from ALPI thick-cut veneer. Three structure families – Batten, Milled and Wave – cover the entire design spectrum from a fine, almost graphic texture to a bold, space-defining rib. Veneer thicknesses range from 2.8 to 16.8 mm.
Every structure is available in three formats: as a flexible Sheet (TNT), as a two-dimensionally formable FlexBoard, and as a rigid Board on an MDF or plywood carrier. This allows the same structure to be used on the wall, on a furniture front or as a freestanding partition – and combined with smooth ALPI decors in standard thickness.
The designations follow a simple logic: "S" stands for the veneer thickness, "P" for the batten or wave width, and "F" (for Milled) for the milling pitch. Exact dimensions for each article can be found in the product finder.
Catalogue

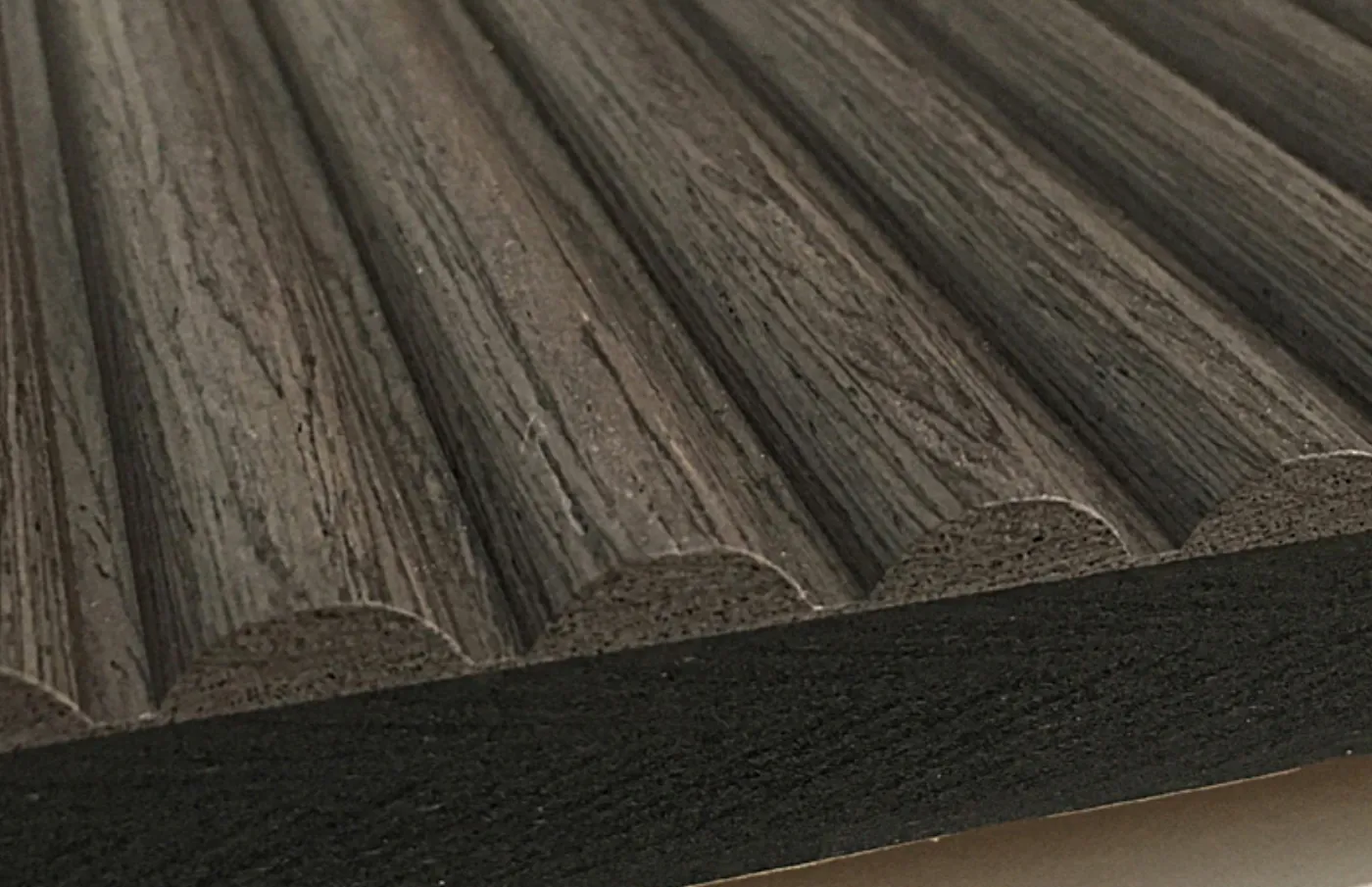

The S-series encompasses flat, bold and pointed-round batten profiles. Veneer thickness ranges from 2.8 mm (S3) to 16.8 mm (S15). Each profile is available as Sheet, FlexBoard or Board.

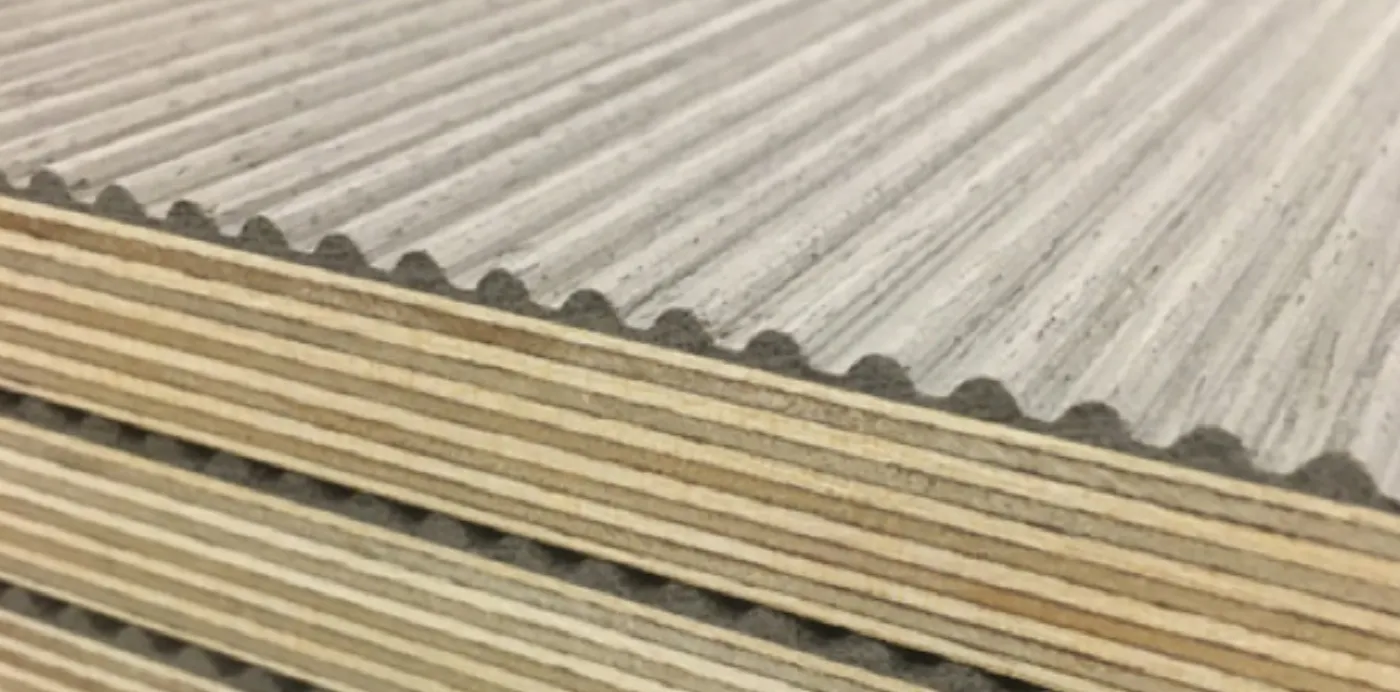

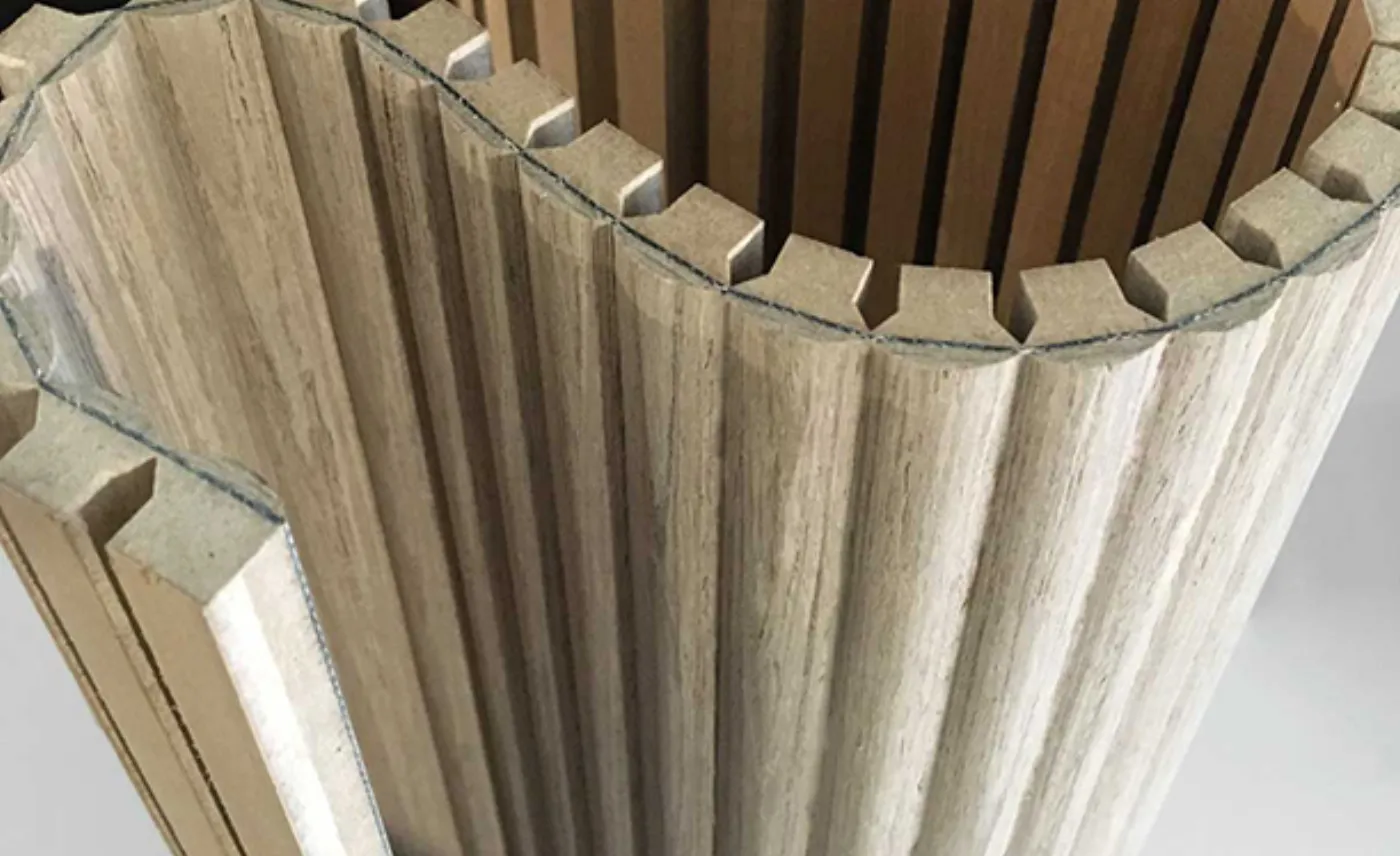

"S" denotes the veneer thickness and "P" the batten width. Milled from 3 mm thick-cut veneer; batten widths of 5, 7.5, 10, 15 and 20 mm respectively. The profile is flat-rounded. Available formats: Sheet (approx. 3 mm) · Flexboard (9 mm) · Board (19 mm)

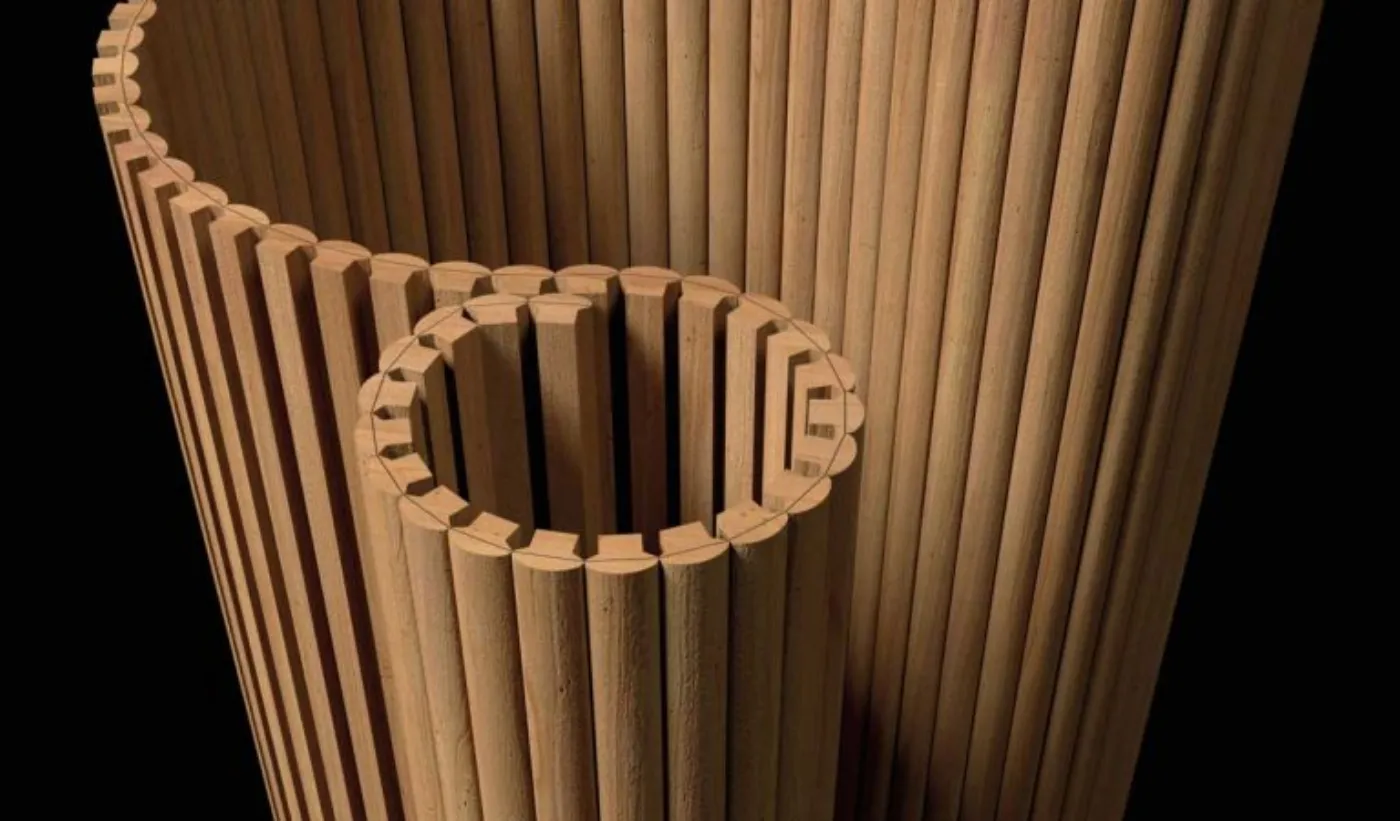

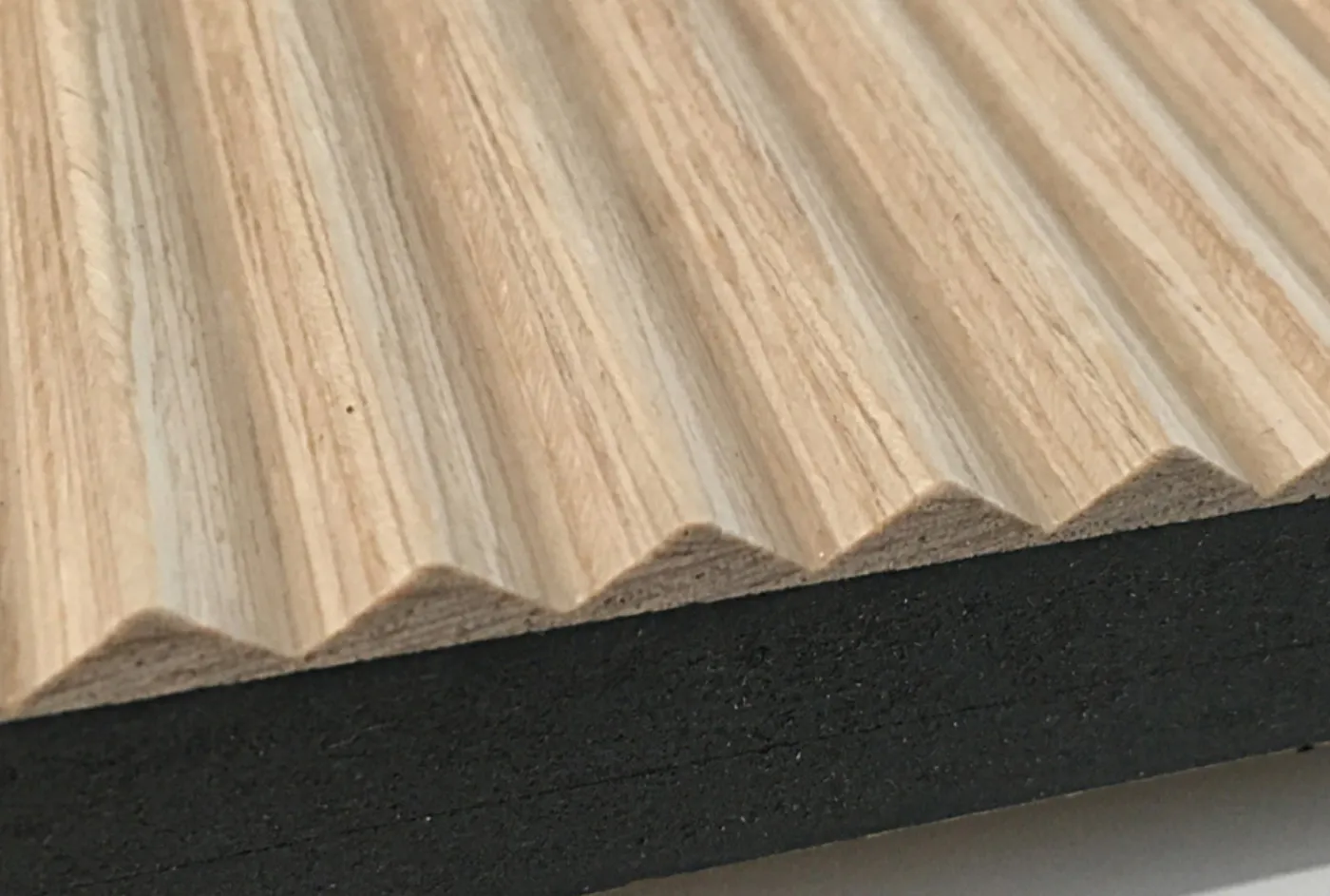

"S" denotes the veneer thickness and "P" the batten width. Milled from 6 mm thick-cut veneer. Batten widths of 10 and 13 mm respectively. The profile is boldly rounded. Available formats: Sheet (approx. 6 mm) · Flexboard (11.5 mm) · Board (22 mm)

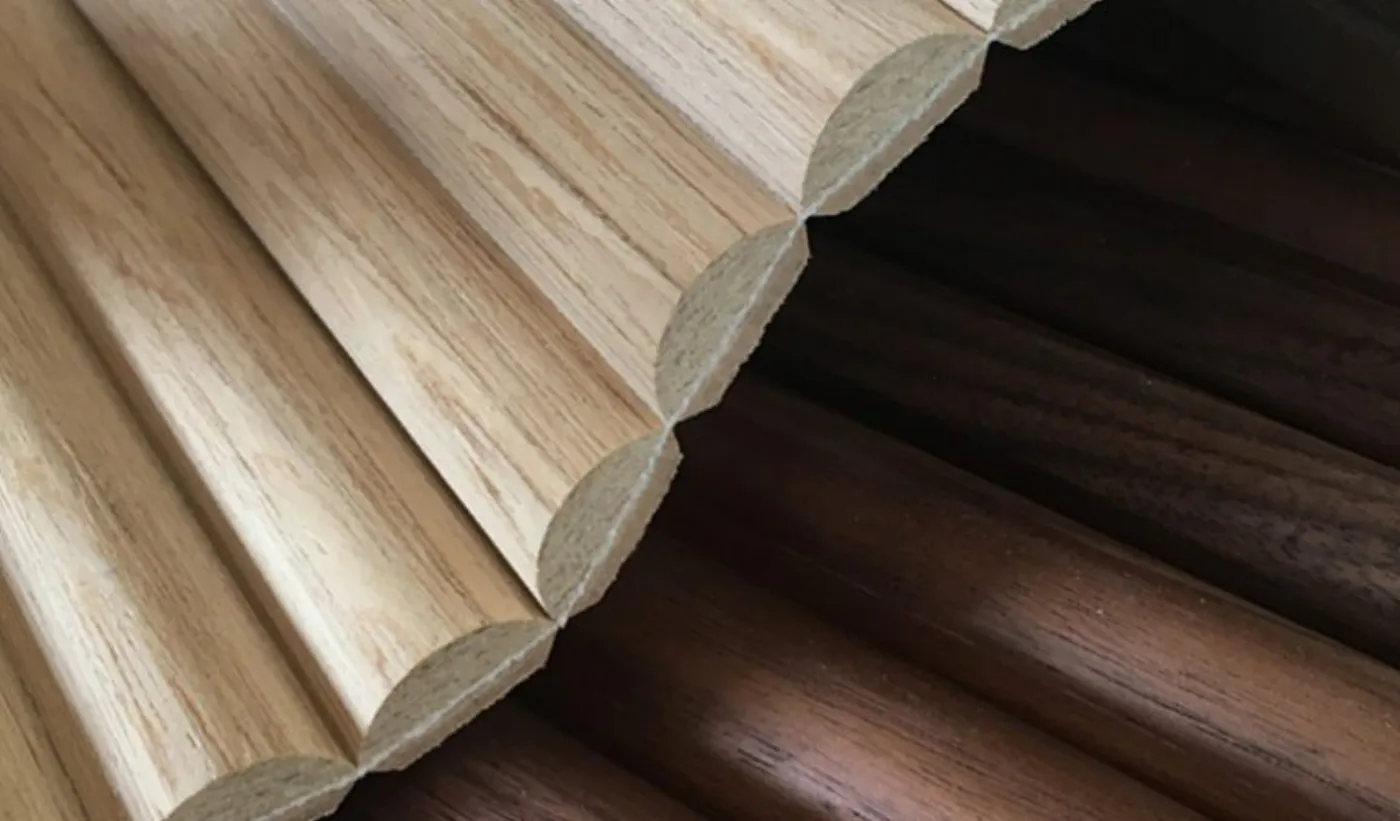

"S" denotes the veneer thickness and "P" the batten width. Milled from 6 mm thick-cut veneer. The batten width is 20 mm. The profile is boldly rounded. Available formats: Sheet (approx. 6 mm) · Flexboard (12 mm) · Board (22 mm)

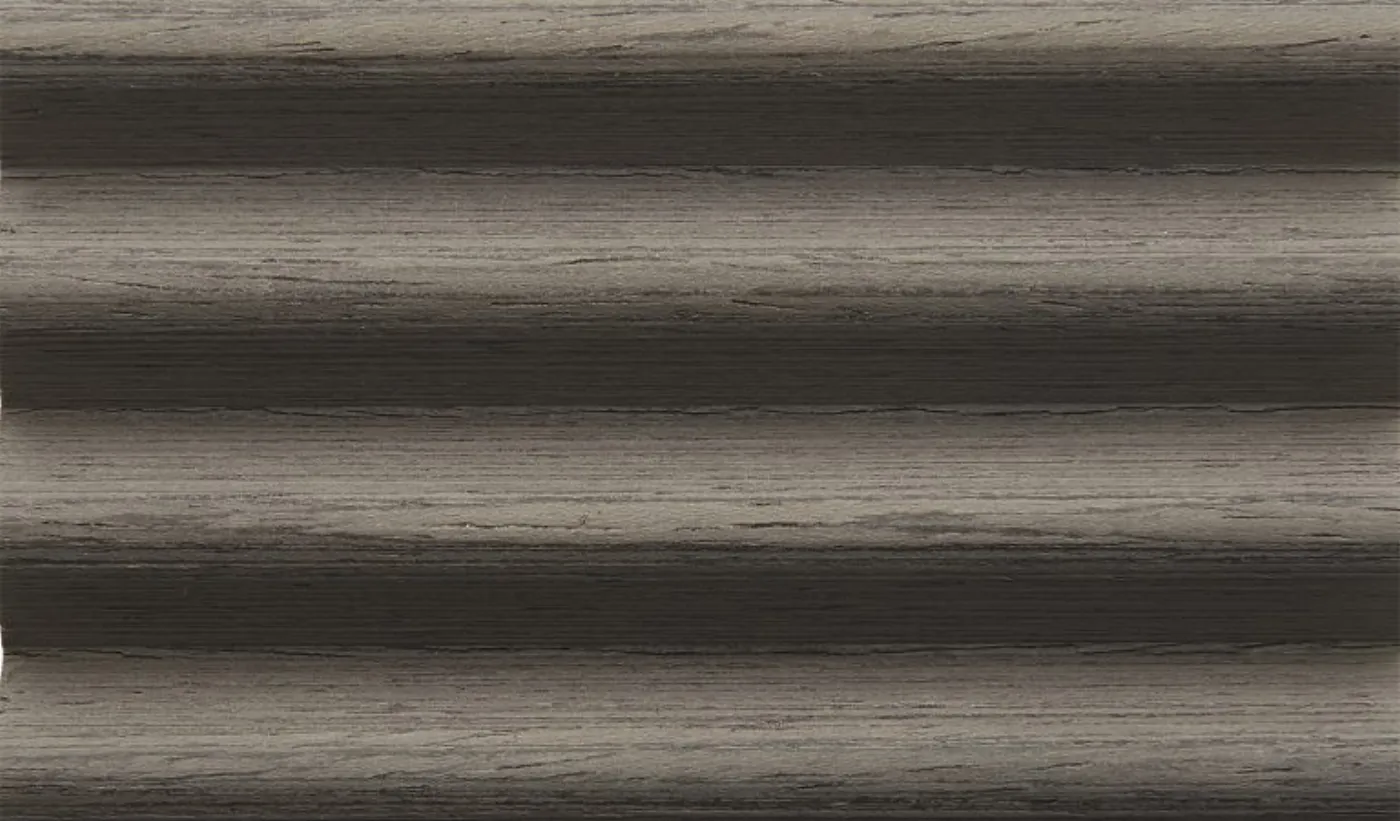

"S" denotes the veneer thickness and "P" the batten width. Milled from 10 mm thick-cut veneer; the batten width is 15 mm. The profile is pointed-rounded. Available formats: Sheet (approx. 9 mm) · Flexboard (14 mm) · Board (25 mm)

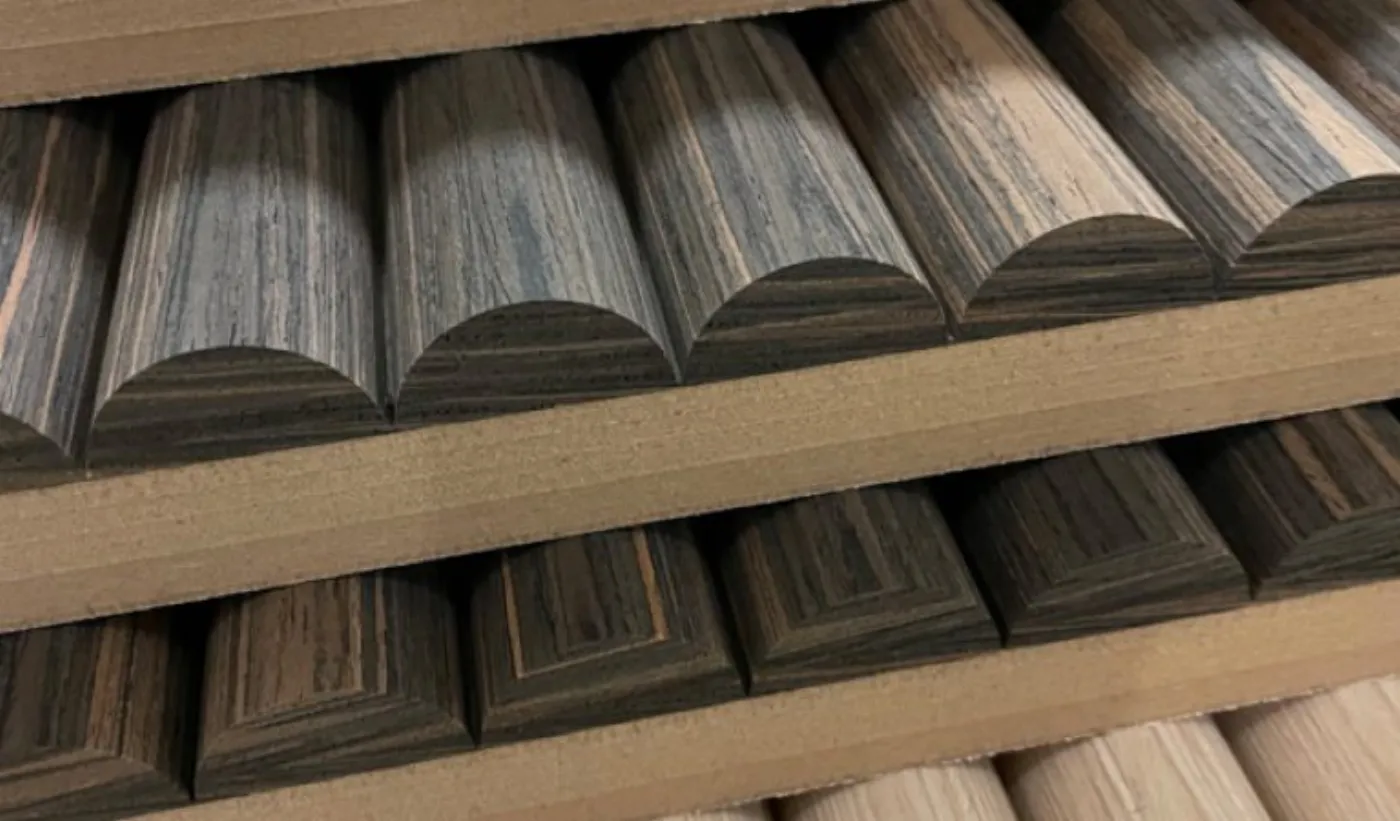

"S" denotes the veneer thickness and "P" the batten width. Milled from 11.5 mm thick-cut veneer; the batten width is 26 mm. The profile is boldly rounded. Available formats: Sheet (approx. 11.5 mm) · Flexboard (17 mm) · Board (27 mm)

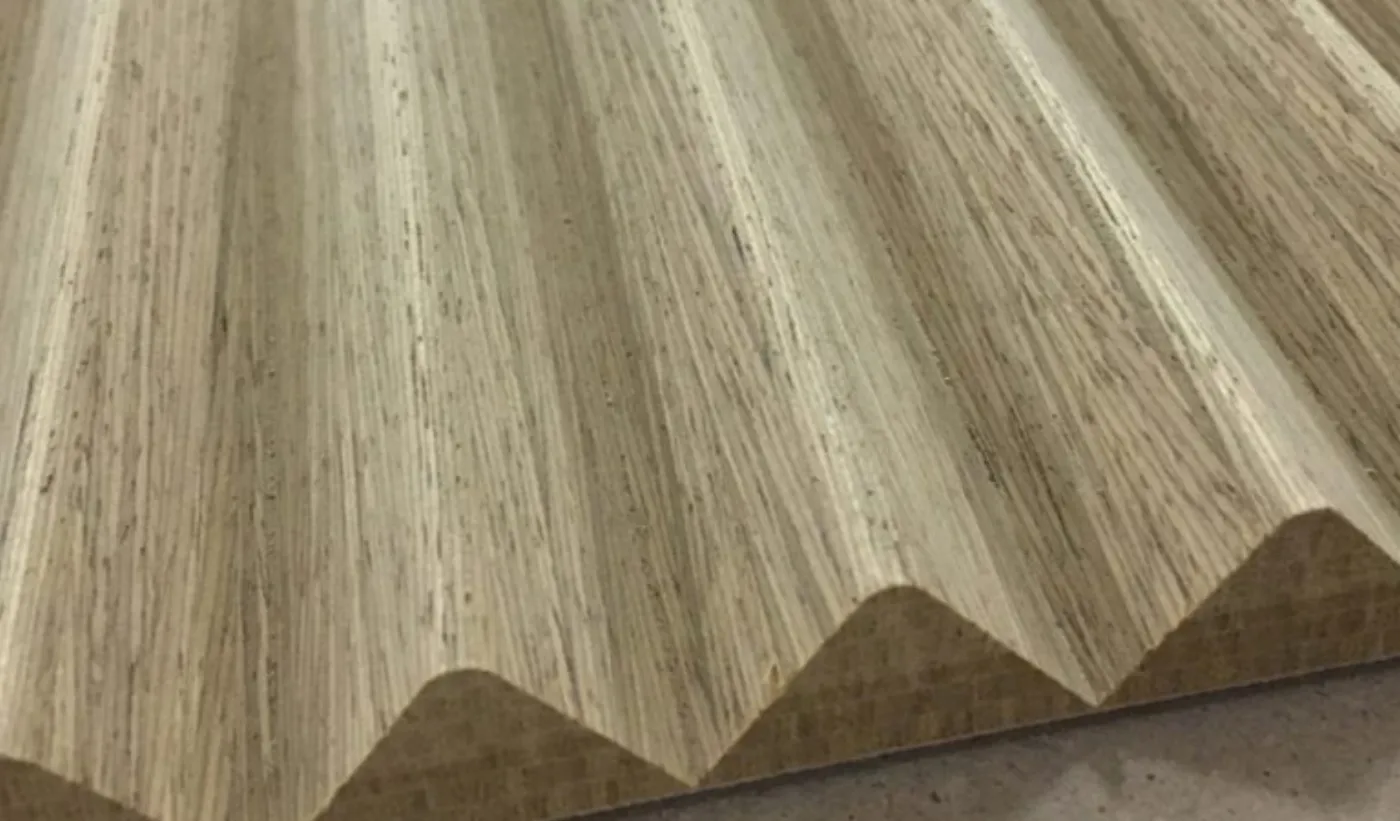

"S" denotes the veneer thickness and "P" the batten width. Milled from 16.8 mm thick-cut veneer; the batten width is 28 mm. The profile is triangular-rounded. Available formats: Sheet (approx. 17 mm) · Flexboard (23 mm) · Board (33 mm)
"S" denotes the veneer thickness and "P" the batten width. Milled from 2.8 mm thick-cut veneer; the batten width is 5 mm. The profile is boldly rounded with a gap to the next round. Available formats: Sheet (approx. 3 mm) · Board (19 mm)
"S" denotes the veneer thickness and "P" the batten width. Milled from 5.6 mm thick-cut veneer; the batten width is 10 mm. The profile is boldly rounded with a gap to the next round. Available formats: Sheet (approx. 6 mm) · Board (22 mm)
"S" denotes the veneer thickness and "P" the batten width. Milled from 5.6 mm thick-cut veneer; the batten width is 18 mm. The profile is boldly rounded with a gap to the next round. Available formats: Sheet (approx. 5.6 mm) · Board (22 mm)

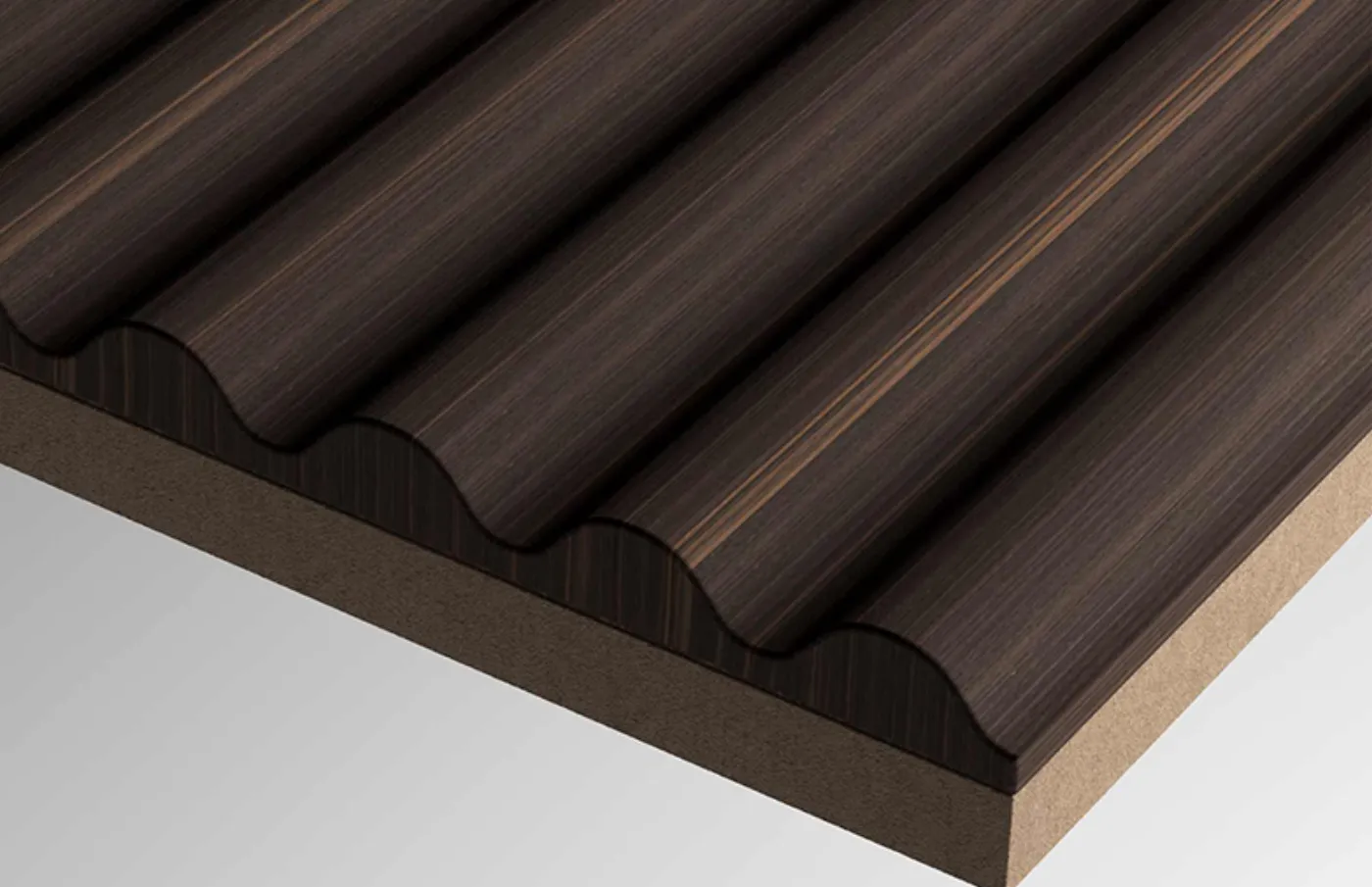

"S" denotes the veneer thickness and "P" the batten width. Milled from 11.2 mm thick-cut veneer; the batten width is 37 mm. The profile is boldly rounded and flows harmoniously into the next round. Available formats: Sheet (approx. 11.5 mm) · Board (27 mm)
Catalogue
MILLED profiles are angular milled textures with a defined raised-element width (P) and milling pitch (F). The graphic precision of these textures is particularly suited to linear accent surfaces.

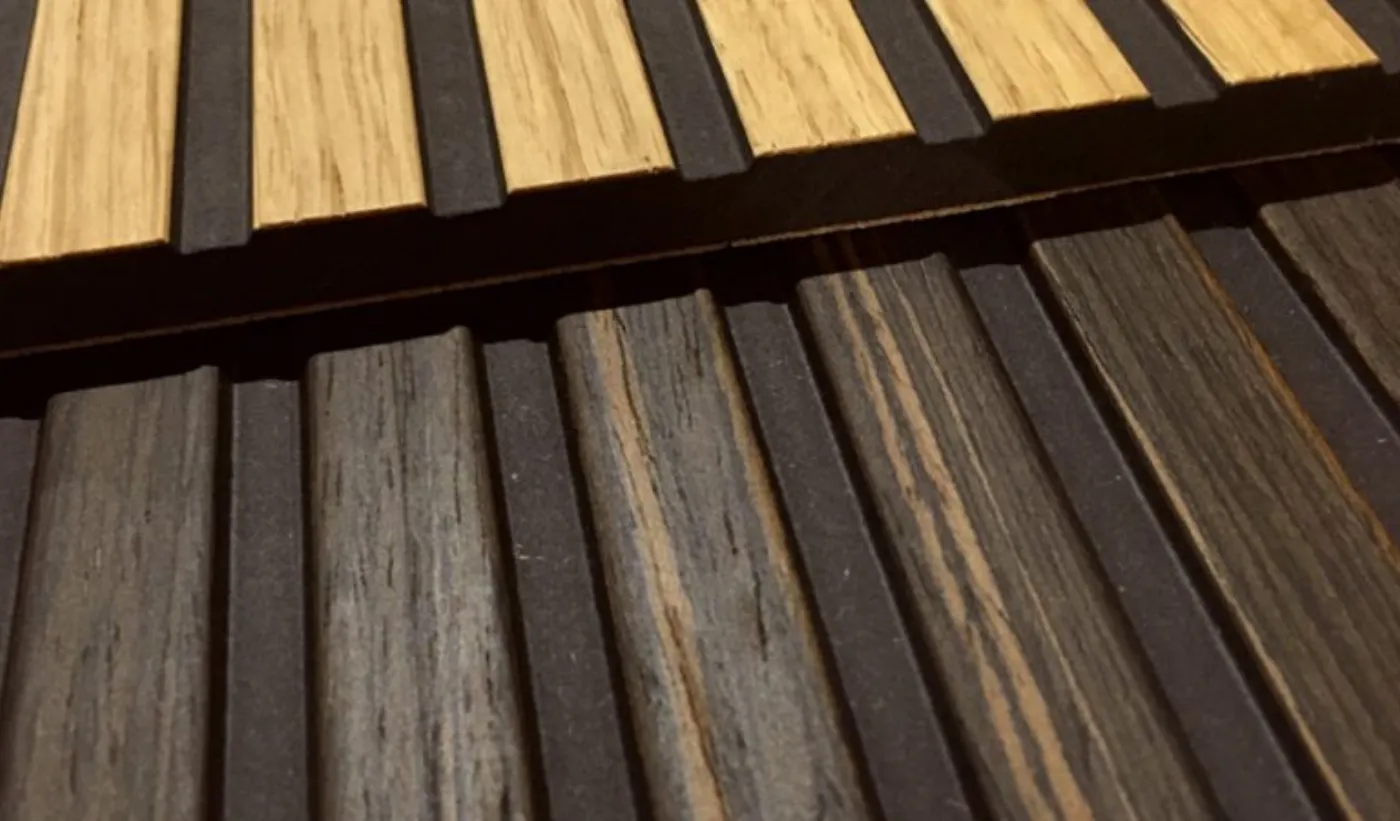

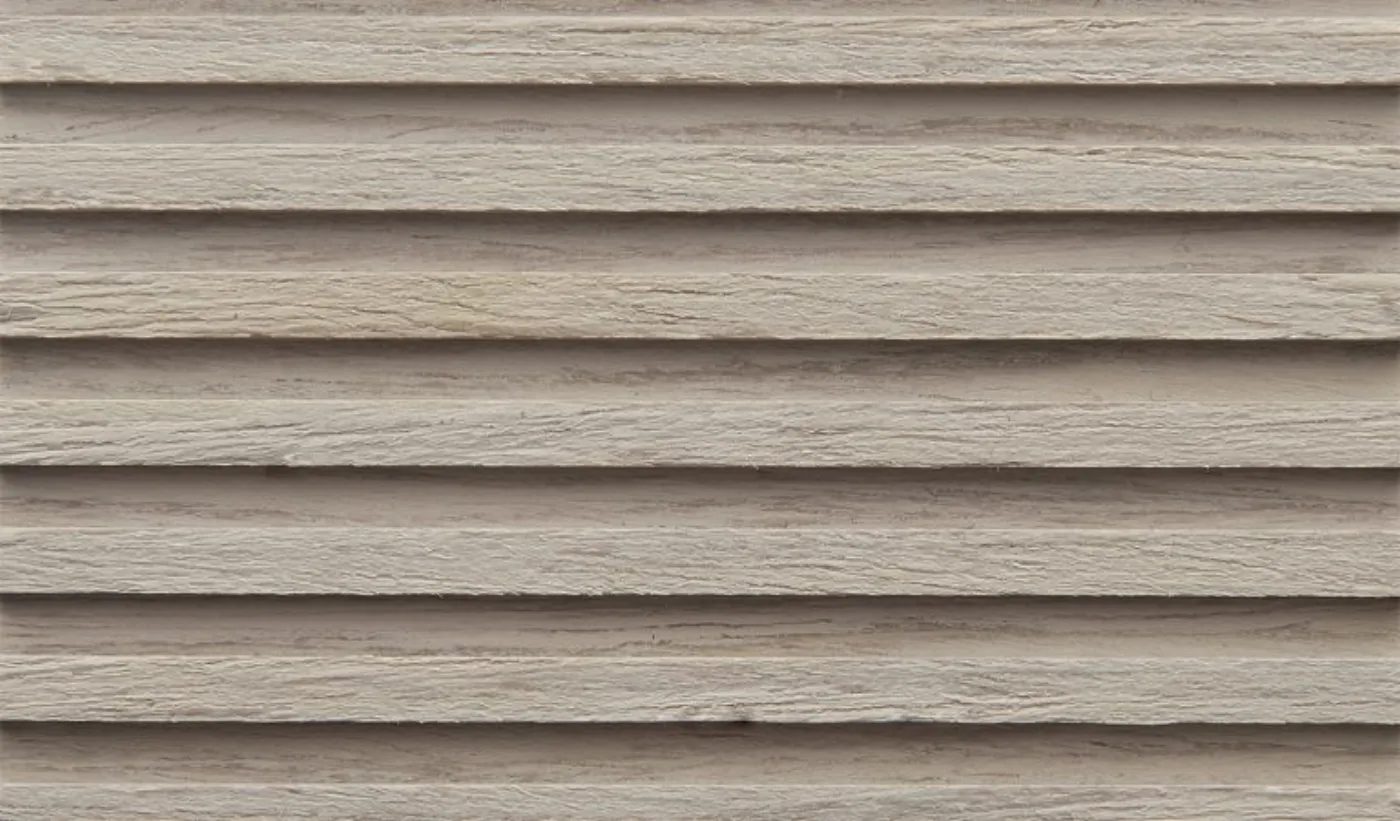

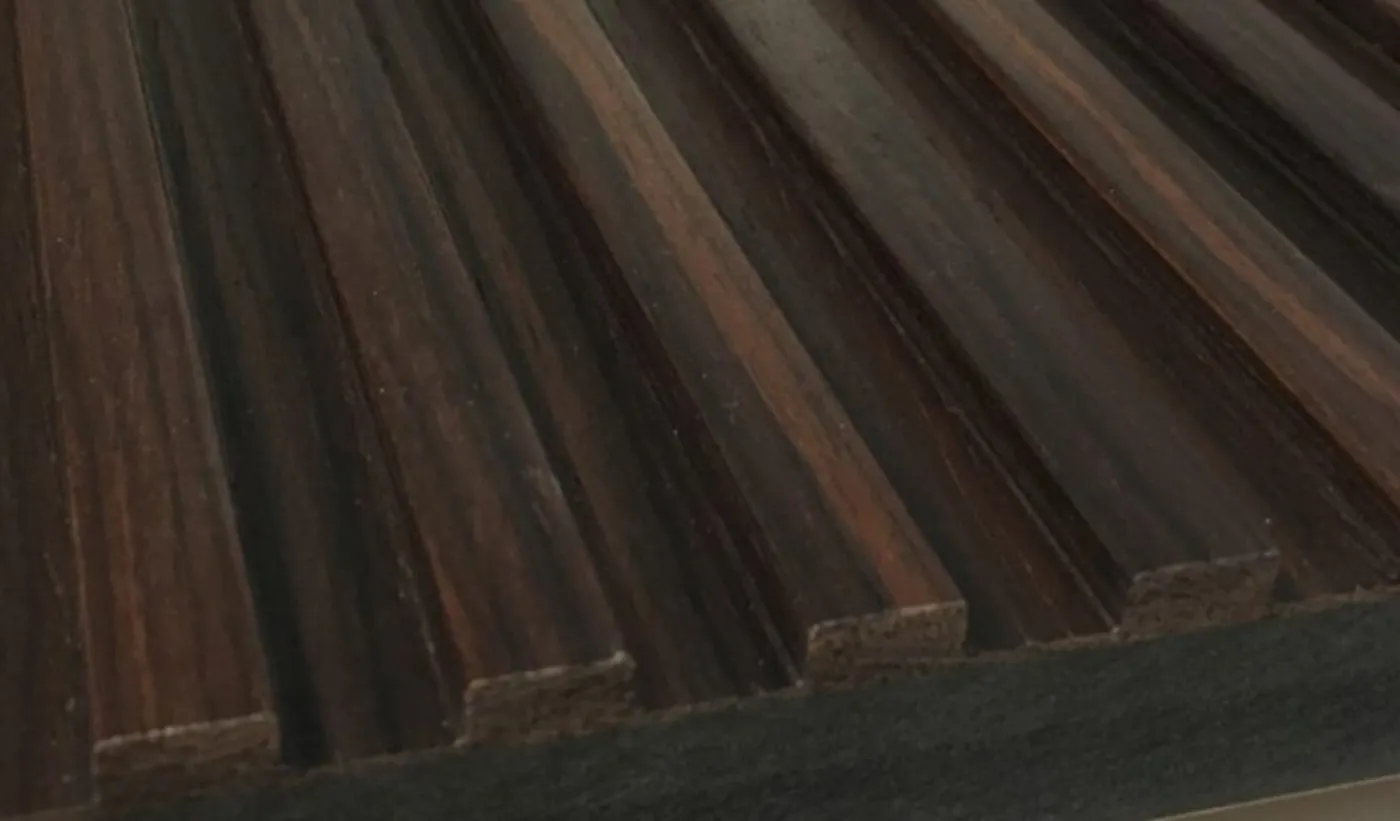

MILLED profiles are angular textures where "P" denotes the width of the raised element and "F" the gap between elements. Milled from 6 mm thick-cut veneer; milling pitches of 8, 10 and 12 mm respectively. The profile is angular. Available formats: Sheet (approx. 6 mm) · Board (21 mm)

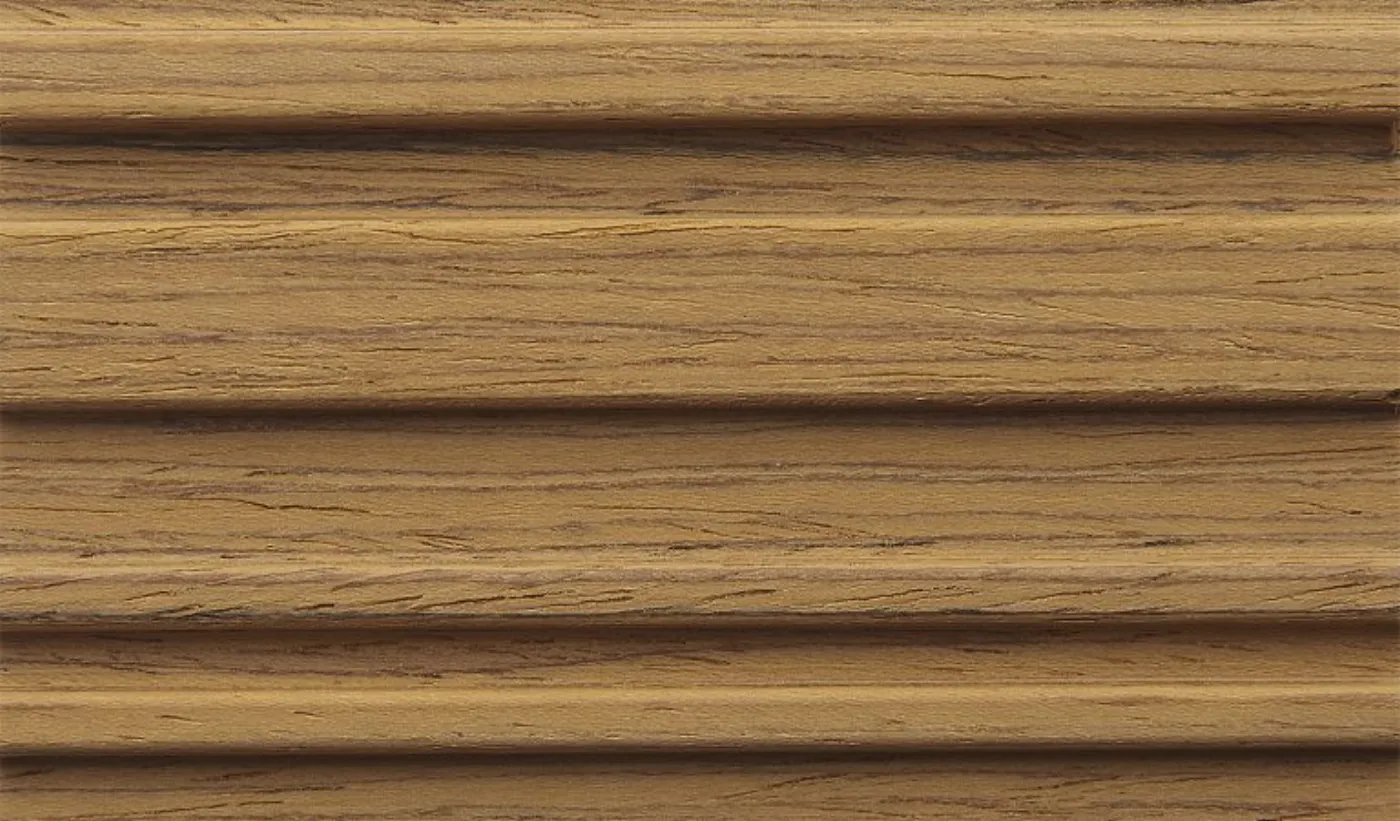

MILLED profiles are angular textures where "P" denotes the width of the raised element, here with alternating gaps. Milled from 6 mm thick-cut veneer; milling pitches of 16, 18 and 21 mm. The profile is angular with alternating dimensions. Available formats: Sheet (approx. 6 mm) · Board (21 mm)
MILLED profiles are angular textures where "P" denotes the width of the raised element and "F" the gap between elements. Milled from 5.6 mm thick-cut veneer; the milling pitch is 20 mm. The profile is angular. Available formats: Sheet (approx. 6 mm) · Board (22 mm)
MILLED profiles are angular textures where "P" denotes the width of the raised element and "F" the gap between elements. Milled from 2.8 mm thick-cut veneer; the milling pitch is 20 mm. The profile is chamfered-angular. Available formats: Sheet (approx. 3 mm) · Board (19 mm)

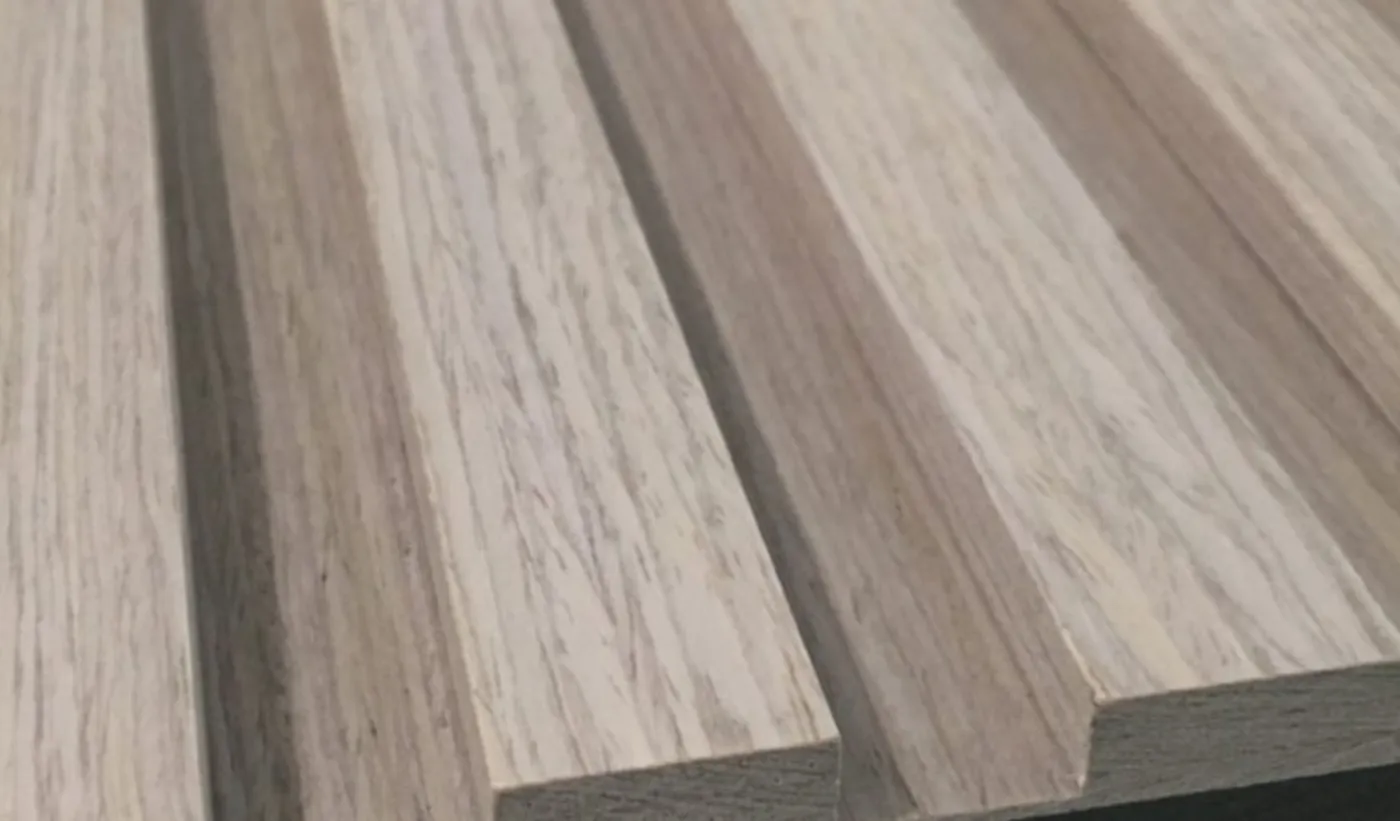

MILLED profiles are angular textures where "P" denotes the width of the raised element and "F" the gap between elements. Milled from 8.4 mm thick-cut veneer; the milling pitch is 35 mm. The profile is angular. Available formats: Sheet (approx. 9 mm) · Board (25 mm)
Catalogue

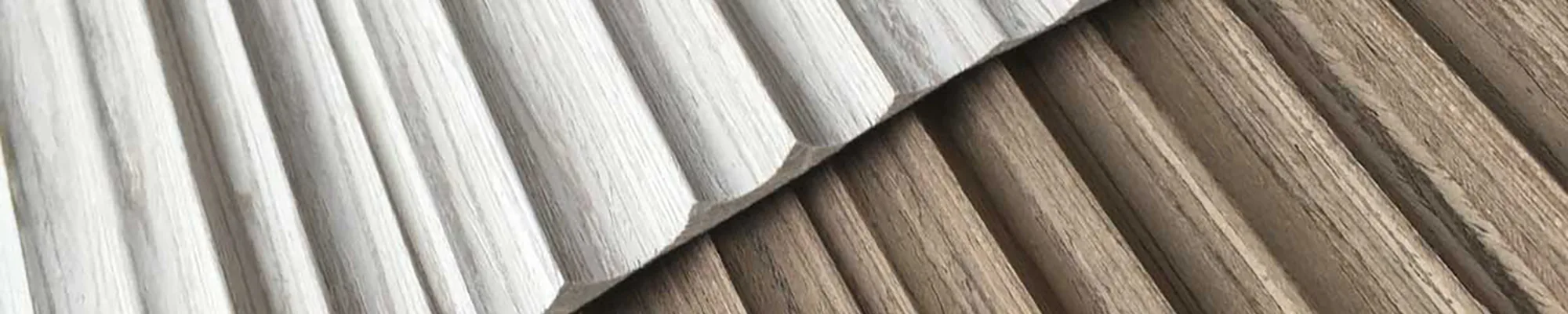

WAVE profiles translate wave motion into milled veneer – from the fine P8 wave to the generous P37.5 sweep. WAVE Plus combines alternating pitches for particular liveliness.

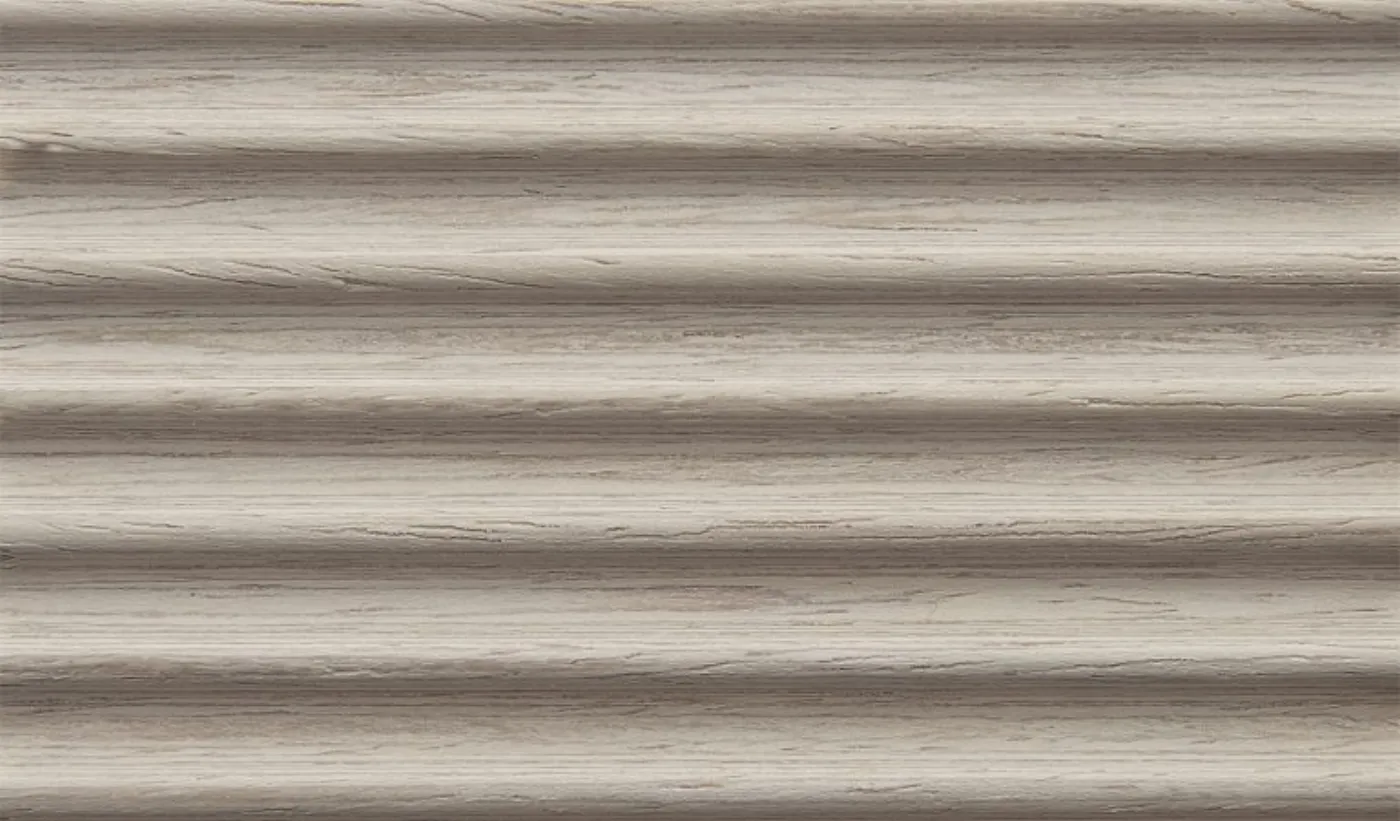

WAVE profiles are wave forms where "P" denotes the distance from crest to crest. Milled from 6 mm thick-cut veneer; the milling pitch is 8.5 mm. The profile is wave-shaped. Available formats: Sheet (approx. 6 mm) · Board (22 mm)

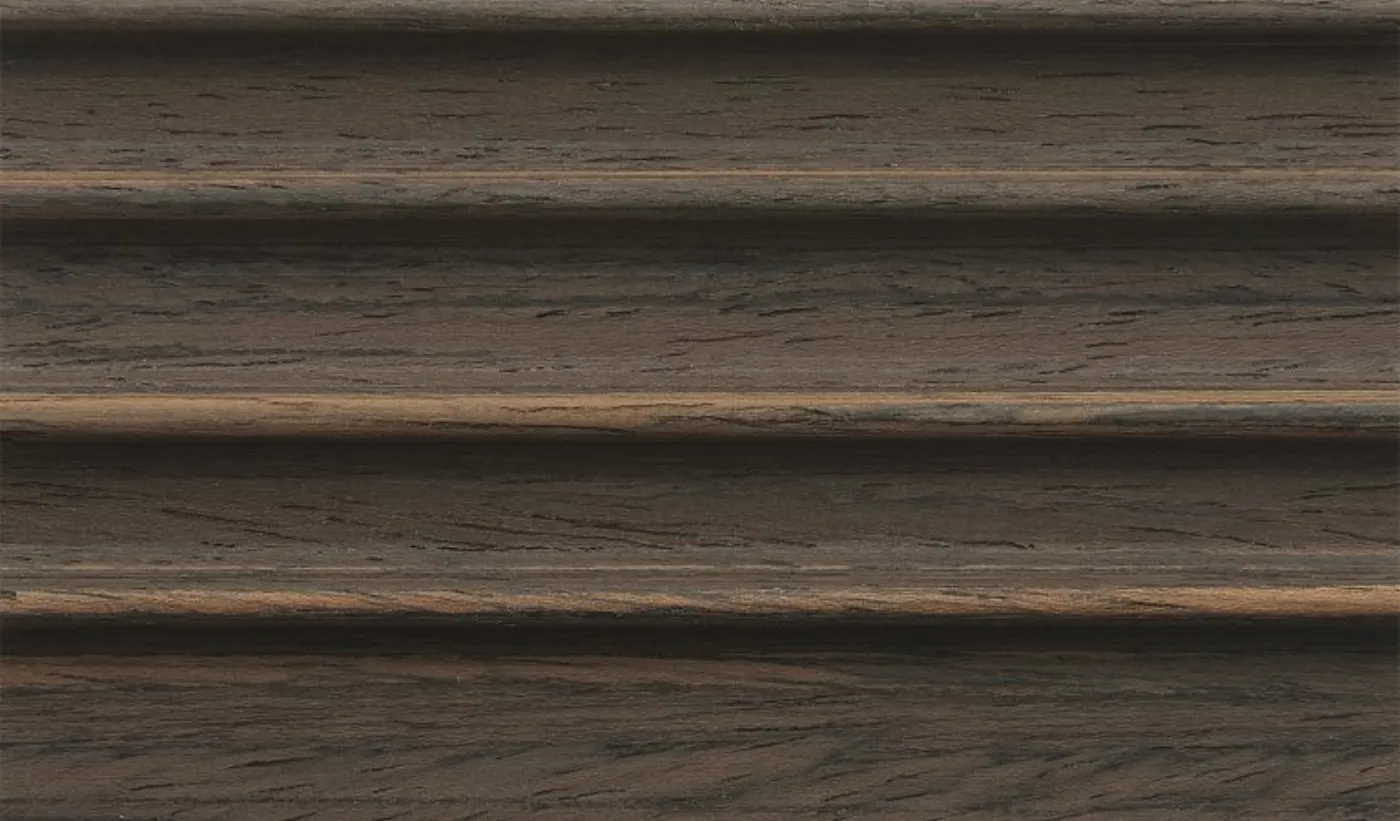

WAVE profiles are wave forms where "P" denotes the distance from crest to crest, here with alternating dimensions. Milled from 6 mm thick-cut veneer; the milling pitch is 12/19 mm. The profile is wave-shaped with alternating pitches. Available formats: Sheet (approx. 6 mm) · Board (22 mm)

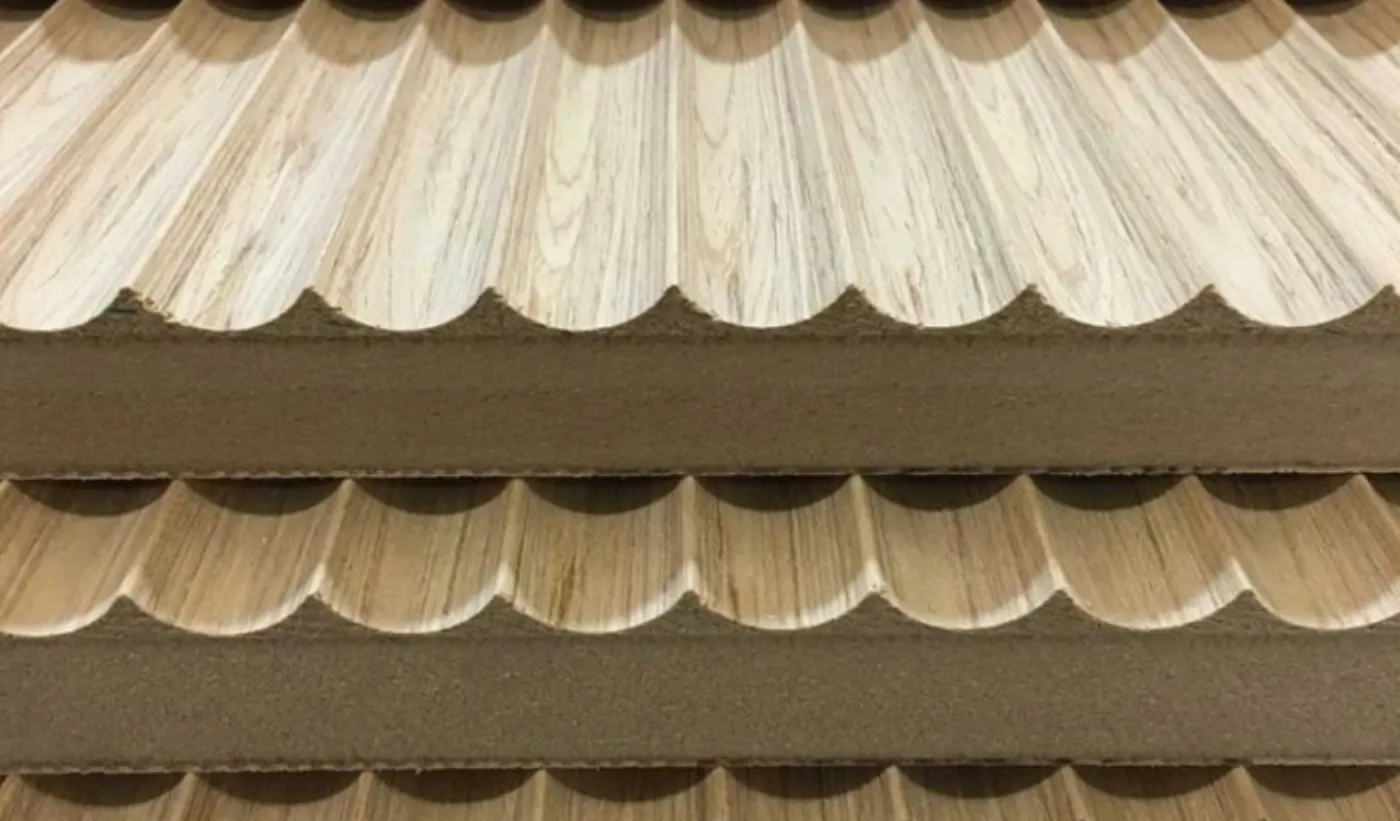

WAVE profiles are wave forms where "P" denotes the distance from crest to crest. Milled from 6 mm thick-cut veneer; the milling pitch is 17 mm. The profile is wave-shaped with uniform pitches. Available formats: Sheet (approx. 6 mm) · Board (22 mm)

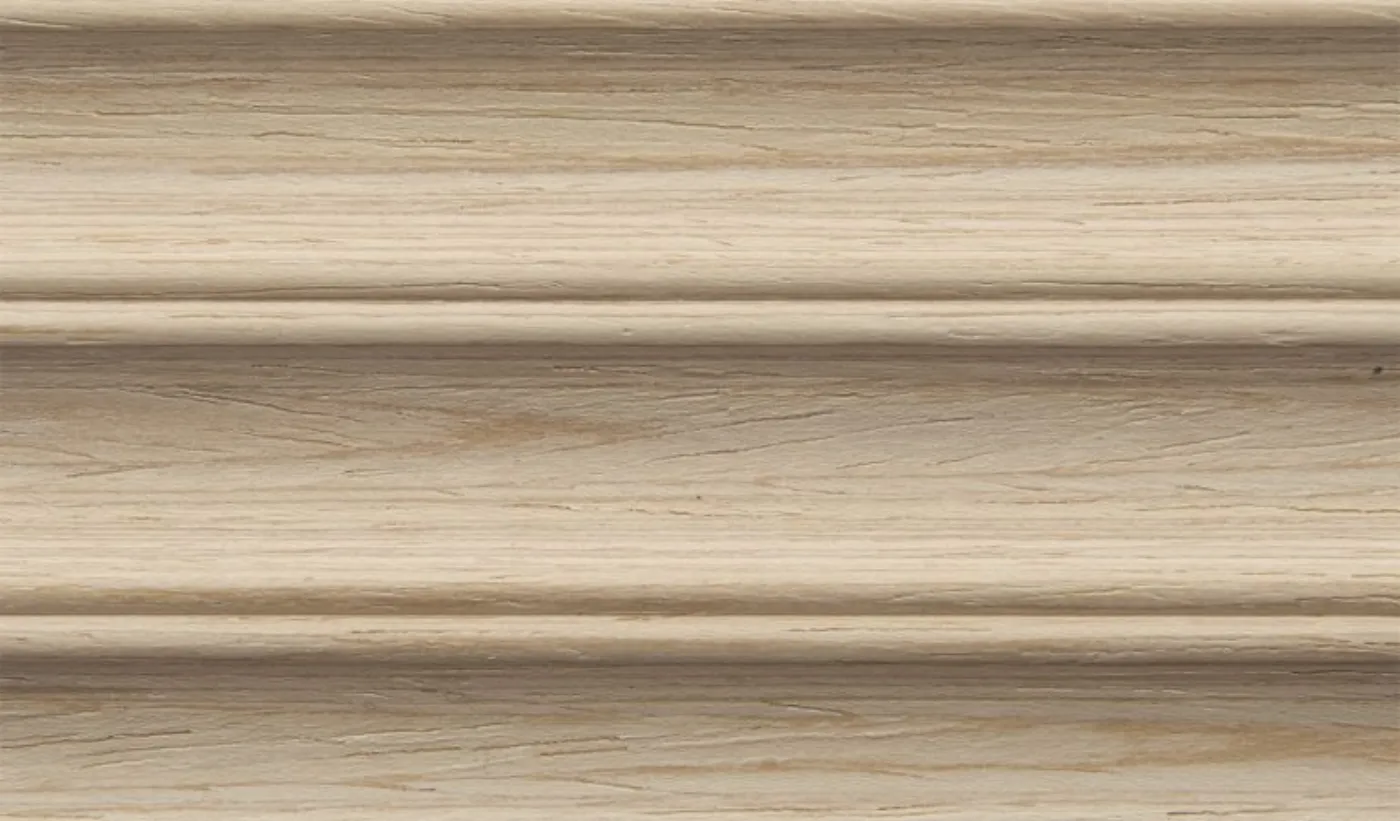

WAVE profiles are wave forms where "P" denotes the distance from wave to wave. Milled from 6 mm thick-cut veneer; the milling pitch is 20 mm. The profile is wave-shaped. Available formats: Sheet (approx. 6 mm) · Board (22 mm)
WAVE profiles are wave forms where "P" denotes the distance from wave to wave. Milled from 11.2 mm thick-cut veneer; the milling pitch is 23 mm. The profile is wave-shaped. Available formats: Sheet (approx. 11.5 mm) · Board (27 mm)

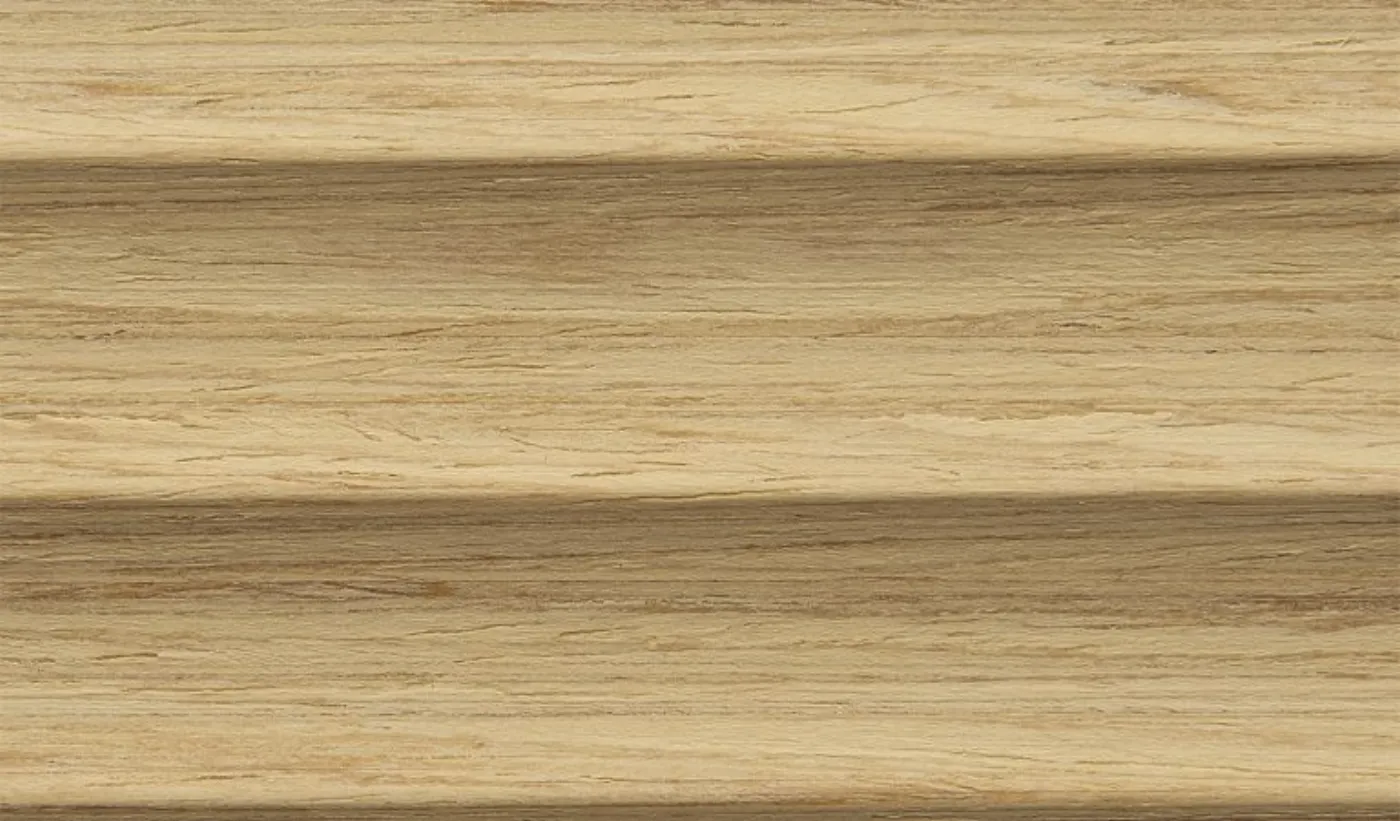

WAVE profiles are wave forms where "P" denotes the distance from crest to crest. Milled from 3 mm thick-cut veneer; the milling pitch is 22 mm. The profile is pointed-wave-shaped. Available formats: Sheet (approx. 3 mm) · Board (19 mm)

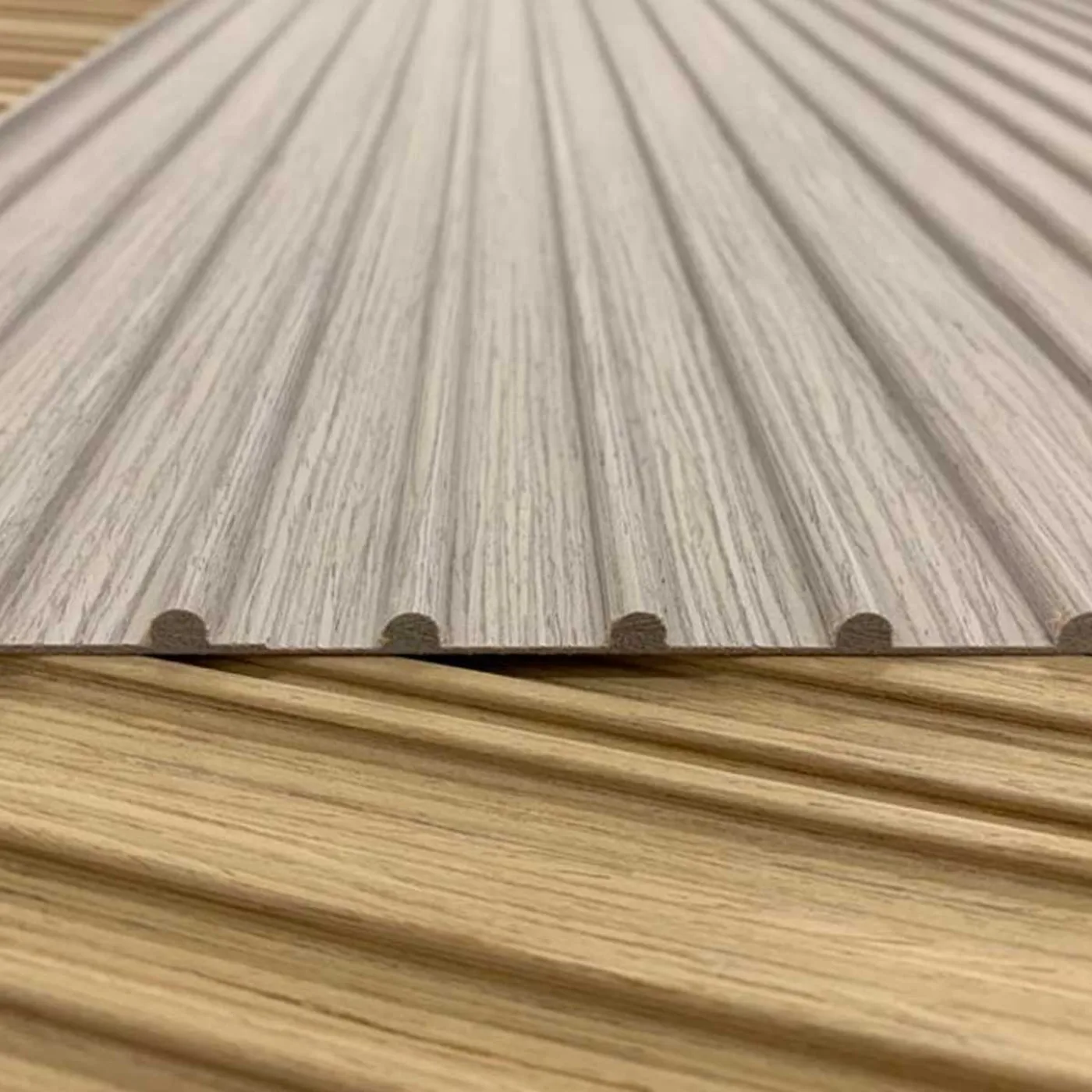

WAVE profiles are wave forms where "P" denotes the combined wave and gap dimension. Milled from 6 mm thick-cut veneer; the milling pitch is 23.5 mm. The profile is semi-circular with a large gap. Available formats: Sheet (approx. 6 mm) · Board (22 mm)
WAVE profiles are wave forms where "P" denotes the length of the wave. Milled from 6 mm thick-cut veneer; the milling pitch is 20 mm. The wave form is elongated. Available formats: Sheet (approx. 3 mm) · Board (19 mm)

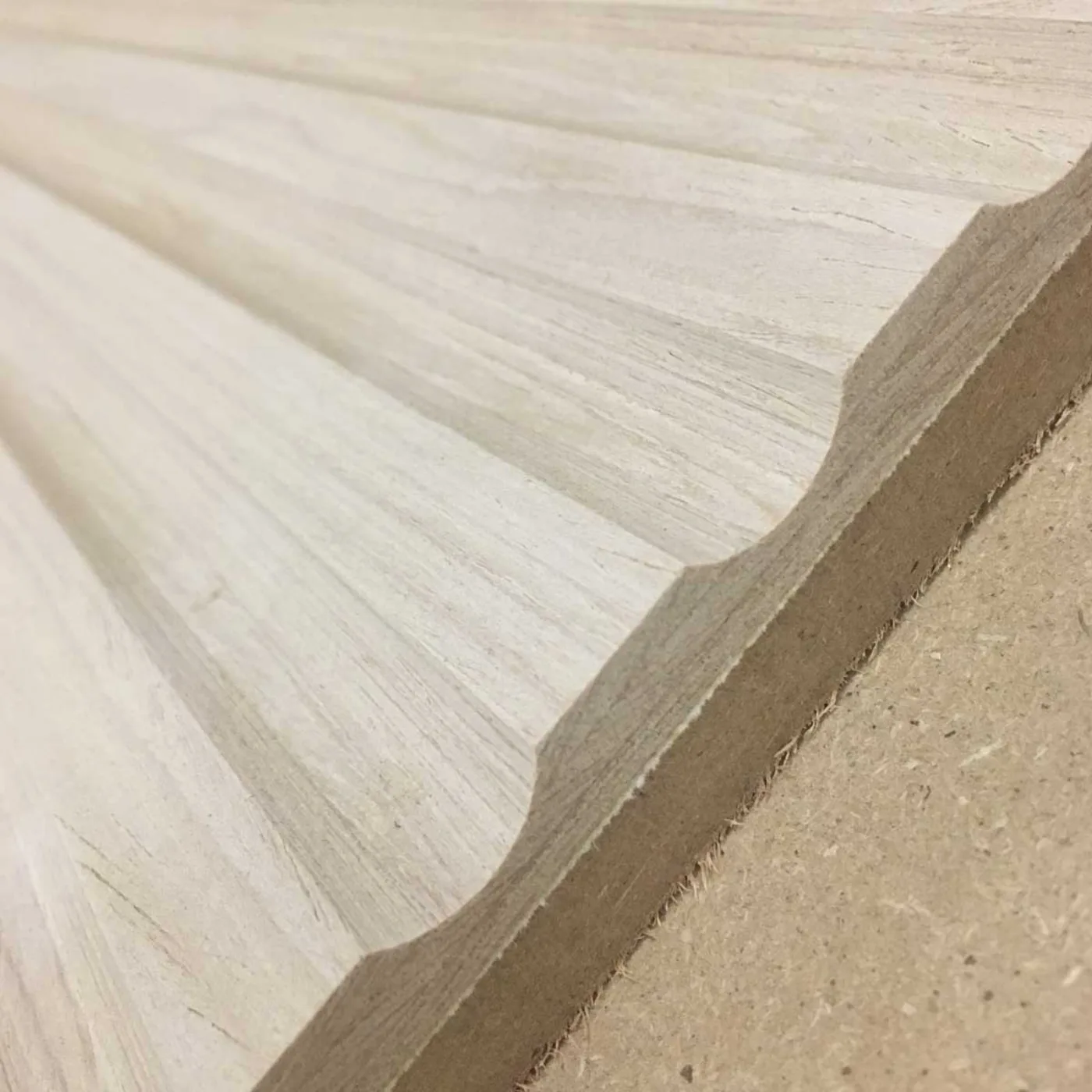

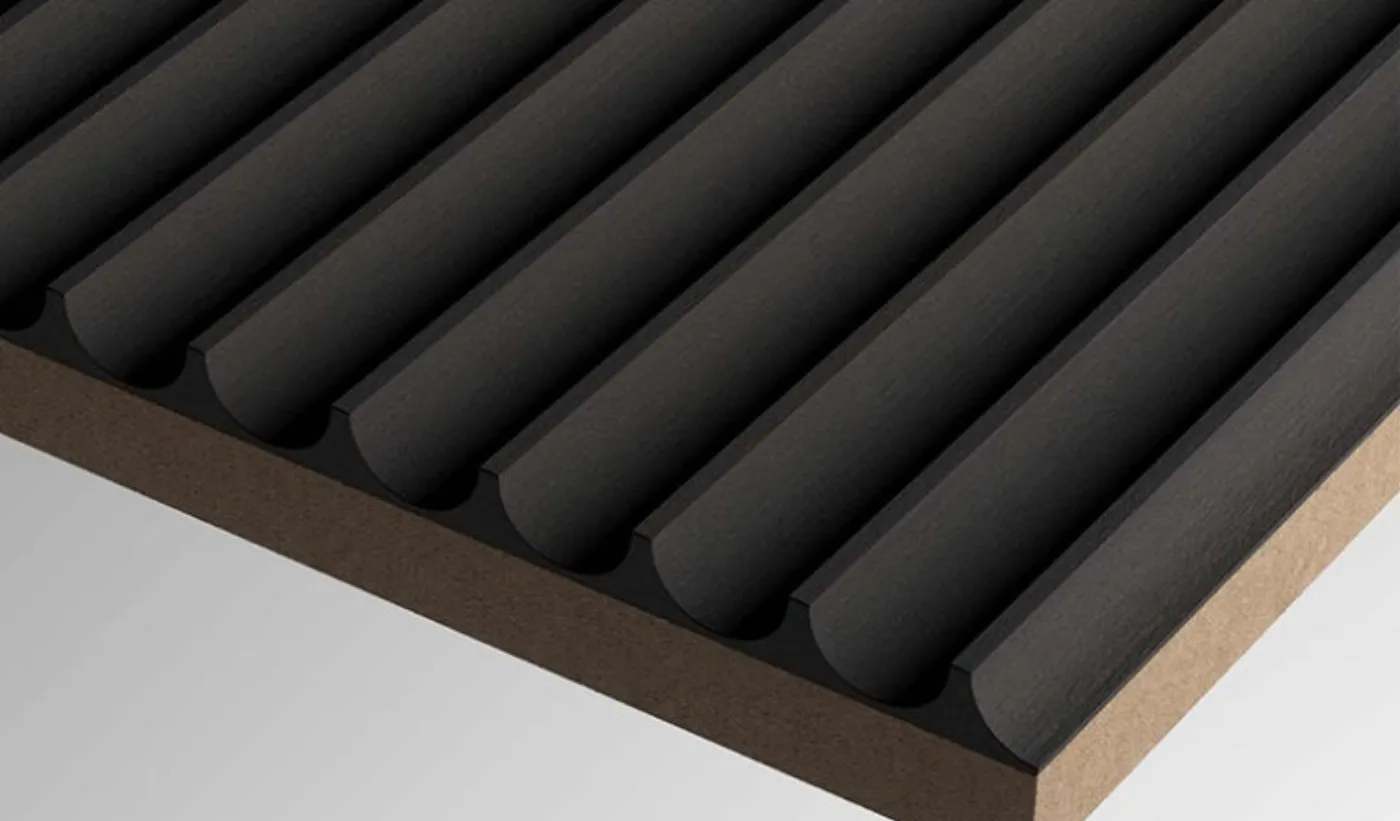

WAVE profiles are wave forms where "P" denotes the distance from the centre of one trough to the centre of the next. Milled from 6 mm thick-cut veneer; the milling pitch is 30 mm. The profile is a flat surface with semi-circular recesses. Available formats: Sheet (approx. 6 mm) · Board (22 mm)

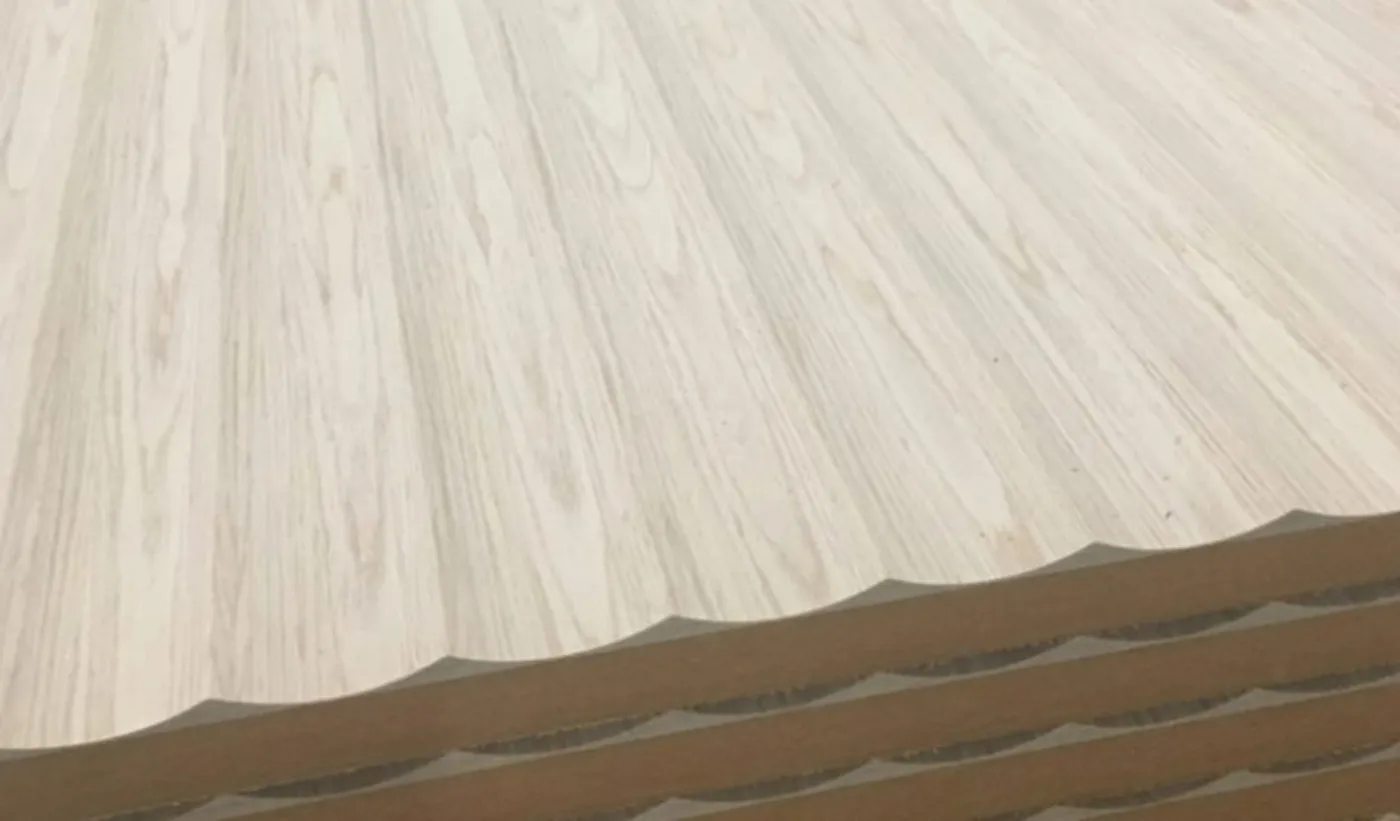

WAVE profiles are wave forms where "P" denotes the distance from the centre of one trough to the centre of the next. Milled from 5.6 mm thick-cut veneer; the milling pitch is 37.5 mm. The profile is wave-shaped with uniform pitches. Available formats: Sheet (approx. 6 mm) · Board (22 mm)
WAVE profiles are wave forms where "P" denotes the distance from crest to crest. Milled from 6 mm thick-cut veneer; the milling pitch varies. The profile is alternately wave-shaped. Available formats: Sheet (approx. 6 mm) · Board (22 mm)
Surfaces

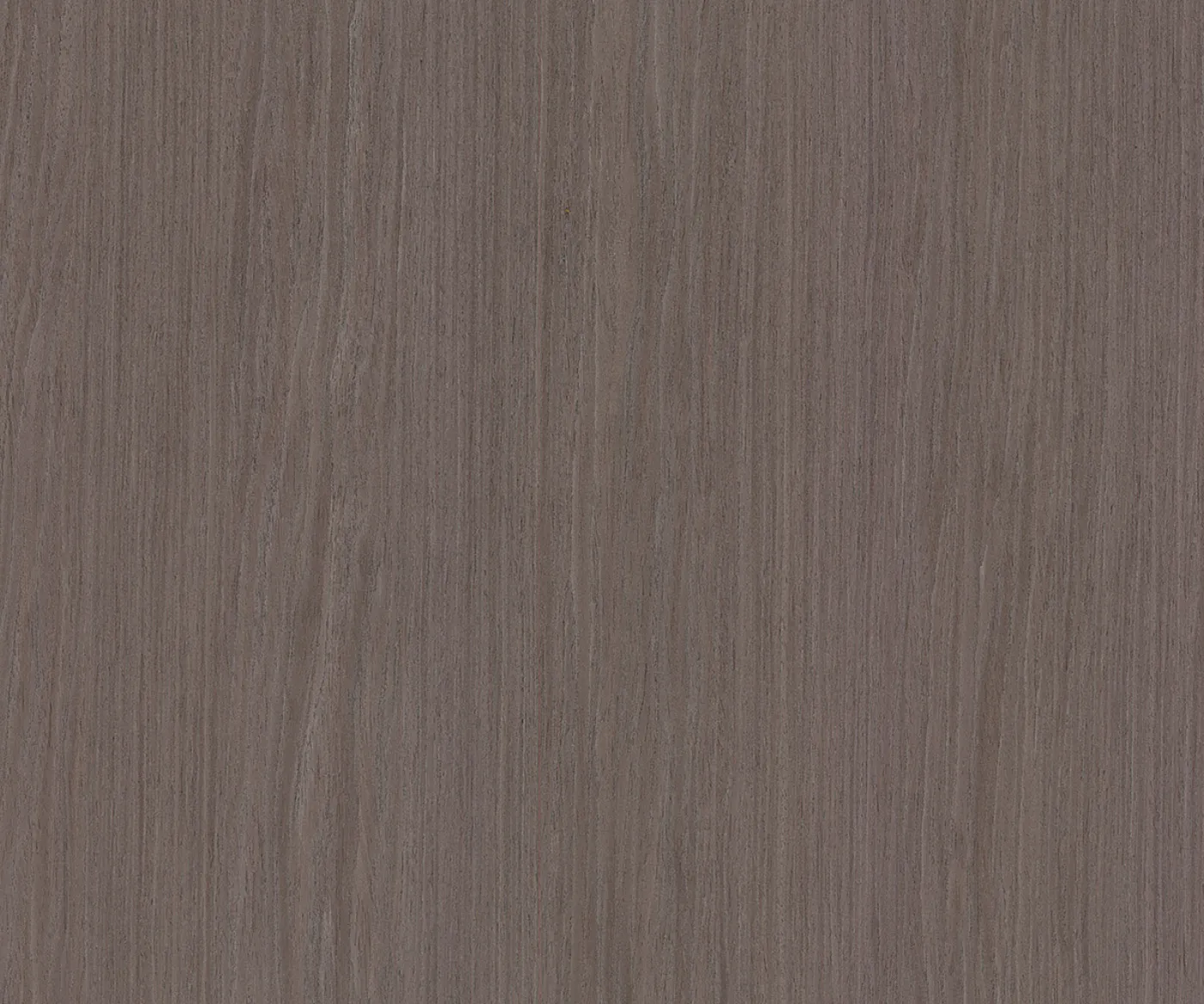

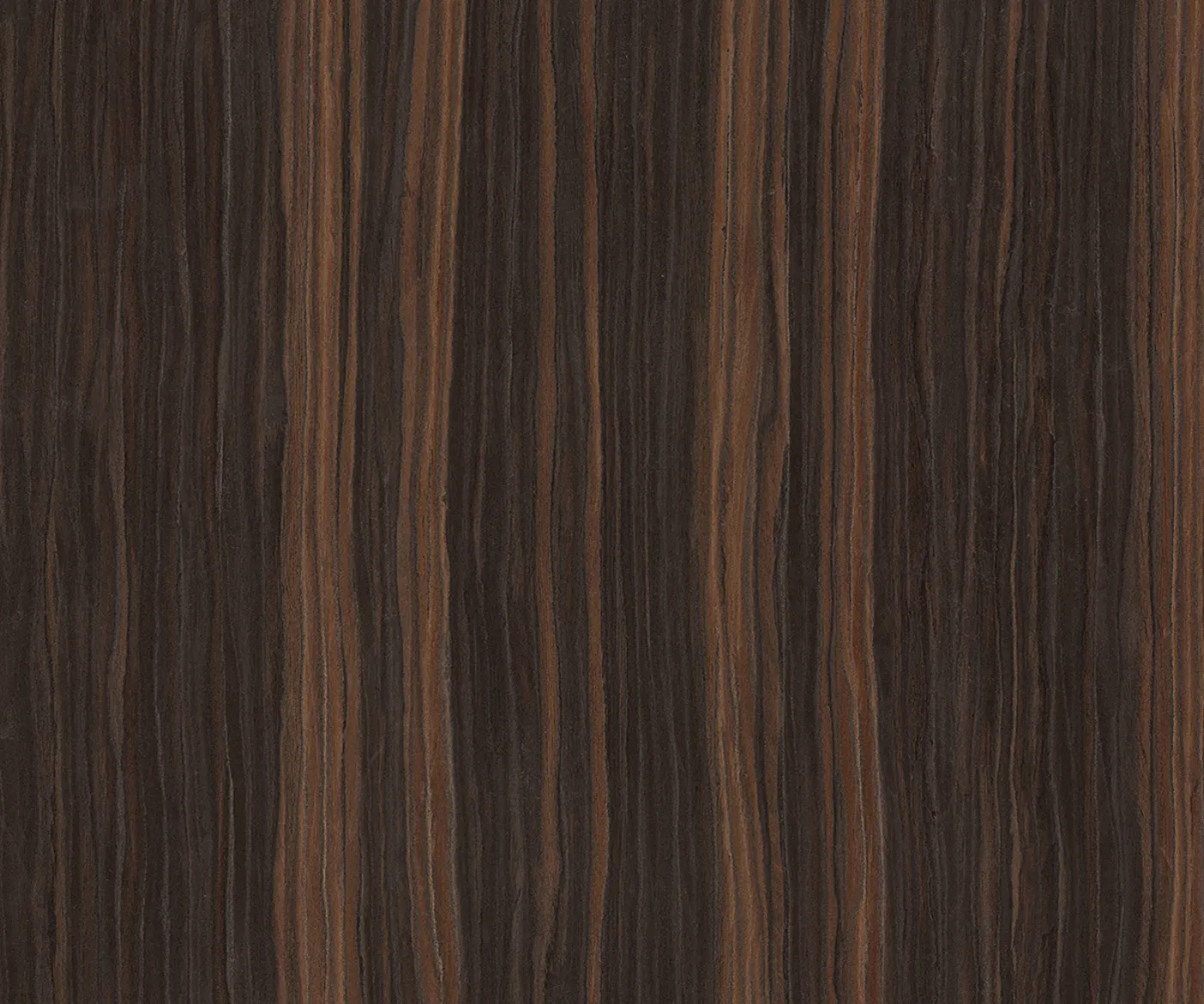

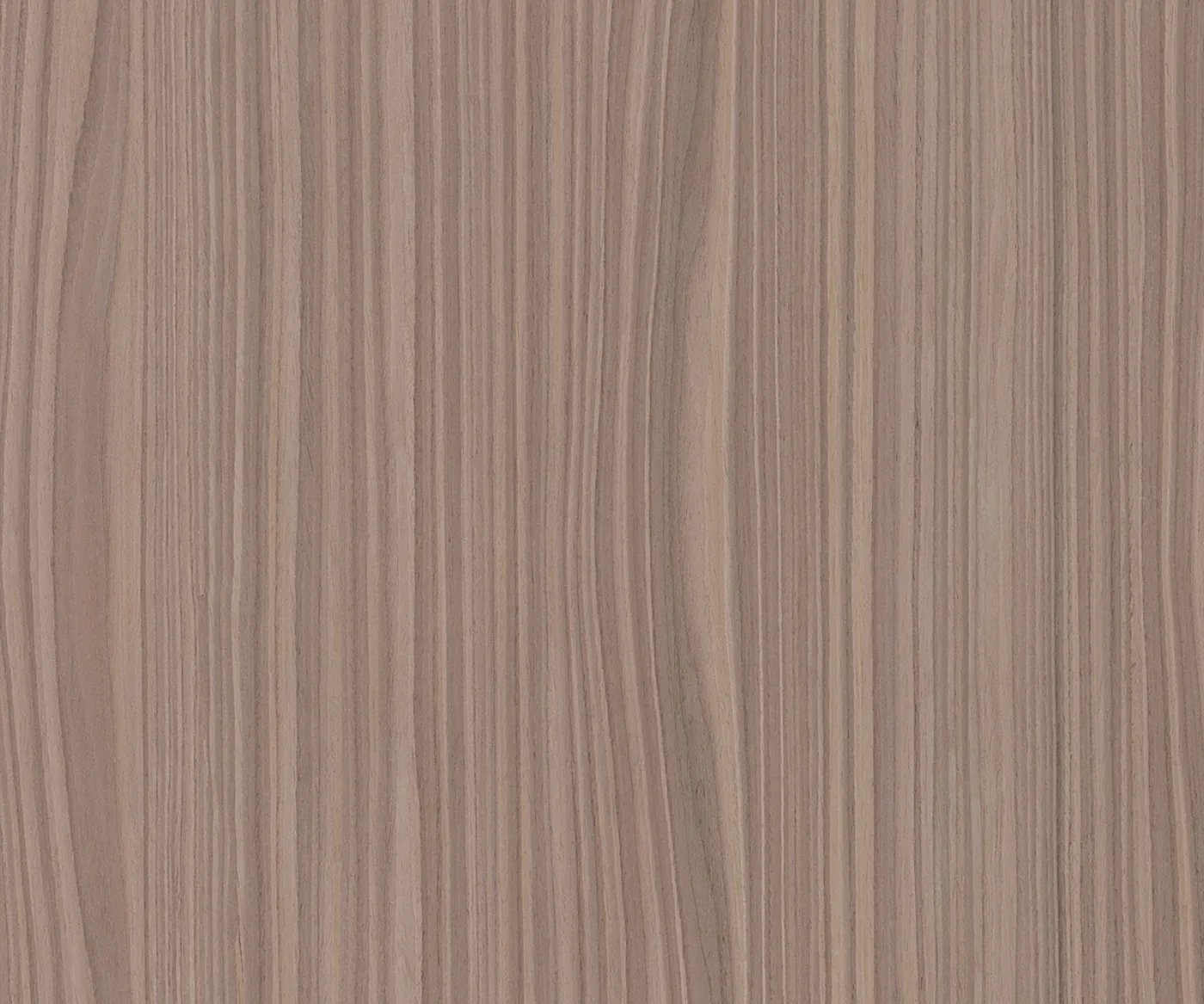

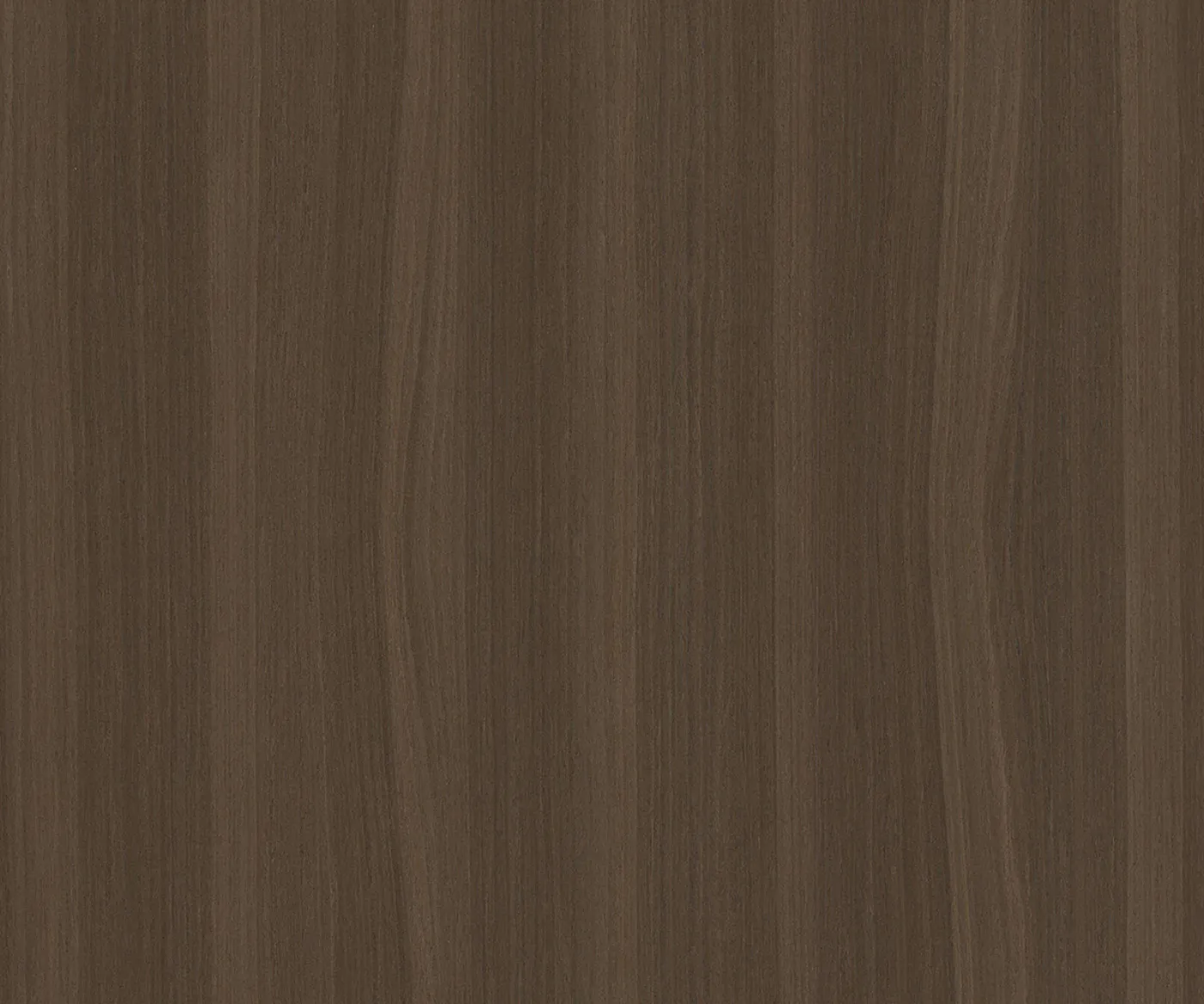

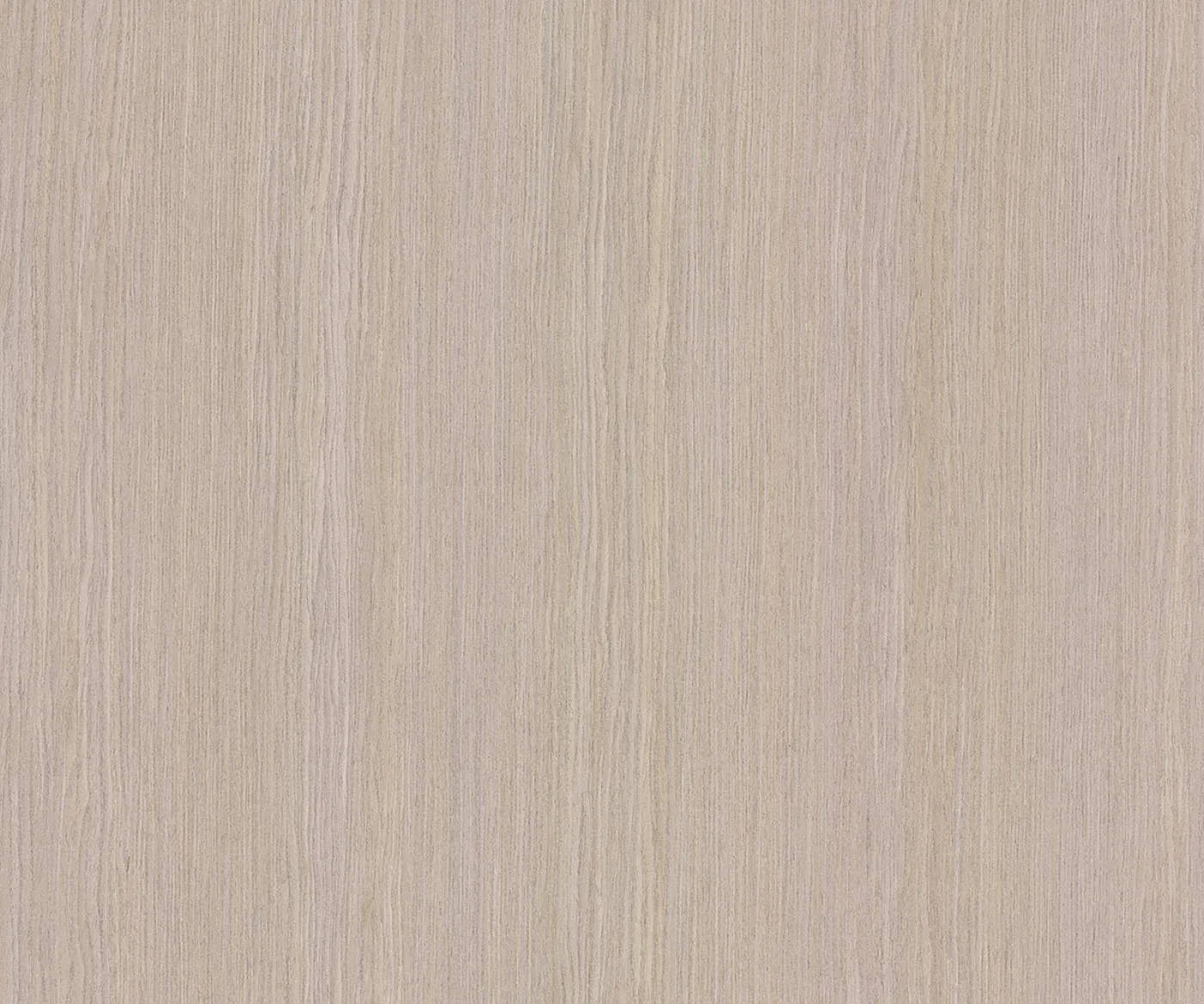

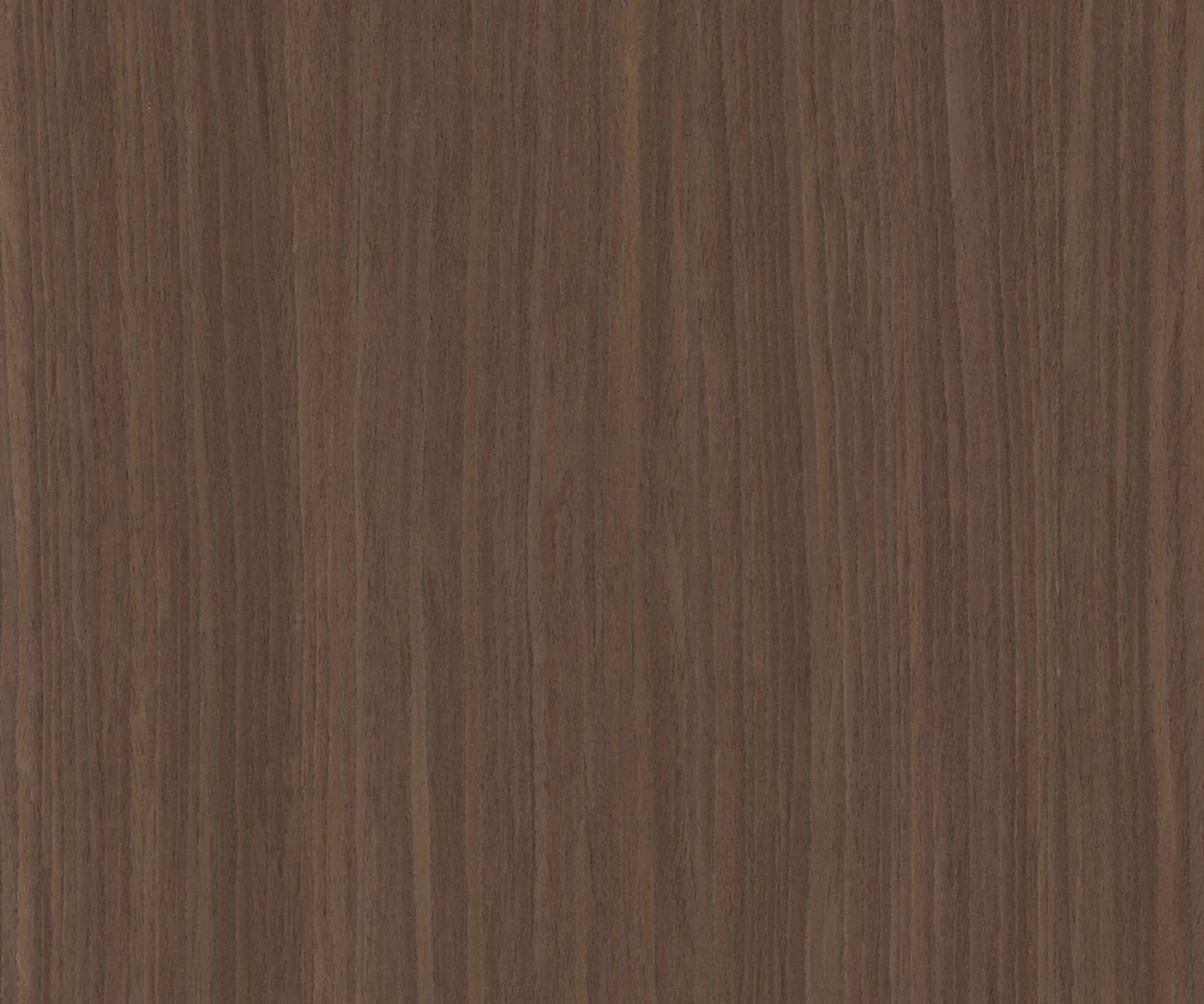

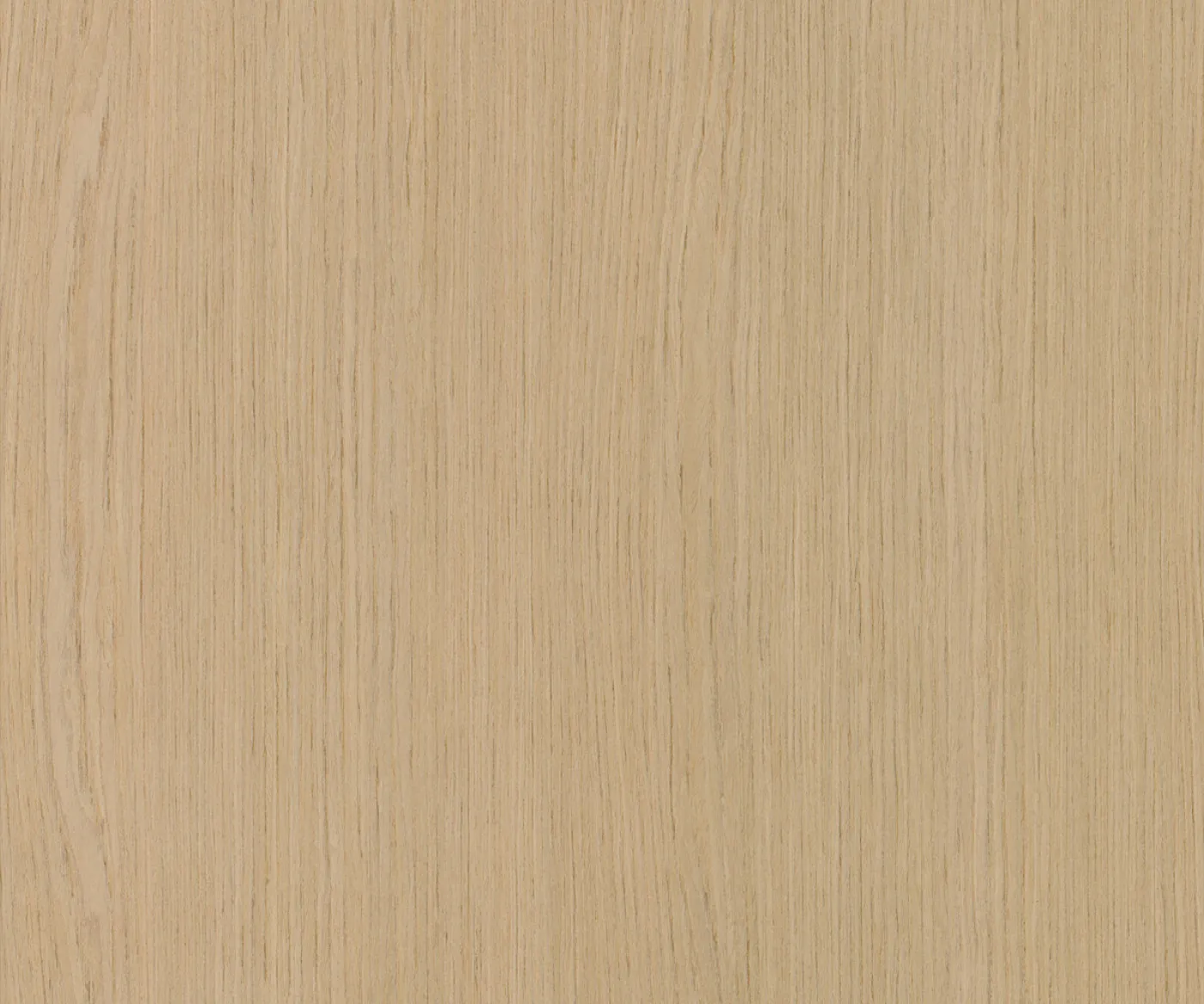

All 4Design Boards are milled from ALPI thick-cut veneers. The eleven decors below form the standard palette – the same decors are also available as standard-thickness veneer for smooth surfaces, floors and combinations.
Next step
Open the product finder for colours, finishes and sample ordering.
